NEMA 34 1.8° 2-Phase Hybrid Closed Loop Stepper Motor with Driver
$65-$80
The NEMA 34 1.8° 2-Phase Hybrid Closed Loop Stepper Motor with Driver boasts a 2-phase configuration and a precise 1.8° step angle, along with a flange size of 86mm. It offers remarkable holding torque, rapid response to frequent startups, extremely low operating noise, smooth operational performance, and excellent control capabilities. Widely applied in heavy-duty industrial sectors like manufacturing and machinery processing.
SPECIFICATIONS
| Model No | 86HB250-80B | 86HB250-98B | 86HB250-118B | 86HB250-156B | 86HB250-80S | 86HB250-98S | 86HB250-118S | 86HB250-156S |
| Holding Torque (N.m) | 4.5 | 6.5 | 8.5 | 12.5 | 4.5 | 6.5 | 8.5 | 12.5 |
| Rated Current (A/PH) | 4 | 4.5 | 5 | 6 | 4 | 4.5 | 5 | 6 |
| Phase Resistance (Ω/PH) | 0.42 | 0.52 | 0.7 | 0.69 | 0.42 | 0.52 | 0.7 | 0.69 |
| Phase Industance (mH/PH) | 2.4 | 4.2 | 7.3 | 7.2 | 2.4 | 4.2 | 7.3 | 7.2 |
| Number of leads (PINS) | 4+6 | 4+6 | 4+6 | 4+6 | 4.5 | 4.5 | 4.5 | 4.5 |
| Rottor Inertia (g.cm²) | 1400 | 2100 | 3200 | 4000 | 1400 | 2100 | 3200 | 4000 |
| Length (L)mm | 106 | 124 | 144 | 176 | 131 | 150 | 170 | 202 |
| Weight (kg) | 2.8 | 3.45 | 4.5 | 5.9 | 3.4 | 3.85 | 4.2 | 6.5 |

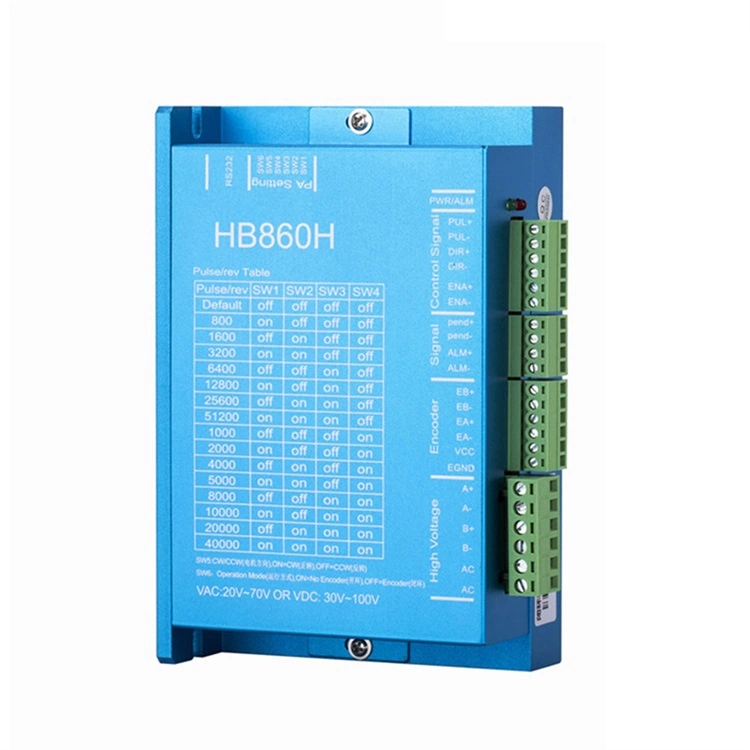

| Steps/Turn | SW5 | SW6 | SW7 | SW8 | Segmentation description |
| Default [400] |
OFF | OFF | OFF | OFF | When SW1, SW2,SW3, and SW4 are all ON,the driver subdivision adopts the driver's internal default subdivision number:the user sets the subdivision number through the software ProTuner.The minimumvalue is 200,the resolution is 1, and the maximum value is 51200. |
| 800 | ON | OFF | OFF | OFF | |
| 1600 | OFF | ON | OFF | OFF | |
| 3200 | ON | ON | OFF | OFF | |
| 6400 | OFF | OFF | ON | OFF | |
| 12800 | ON | OFF | ON | OFF | |
| 25600 | OFF | ON | ON | OFF | |
| 51200 | ON | ON | ON | OFF | |
| 1000 | OFF | OFF | OFF | ON | |
| 2000 | ON | OFF | OFF | ON | |
| 4000 | OFF | ON | OFF | ON | |
| 5000 | ON | ON | OFF | ON | |
| 8000 | OFF | OFF | ON | ON | |
| 10000 | ON | OFF | ON | ON | |
| 20000 | OFF | ON | ON | ON | |
| 40000 | ON | ON | ON | ON |
Product Display

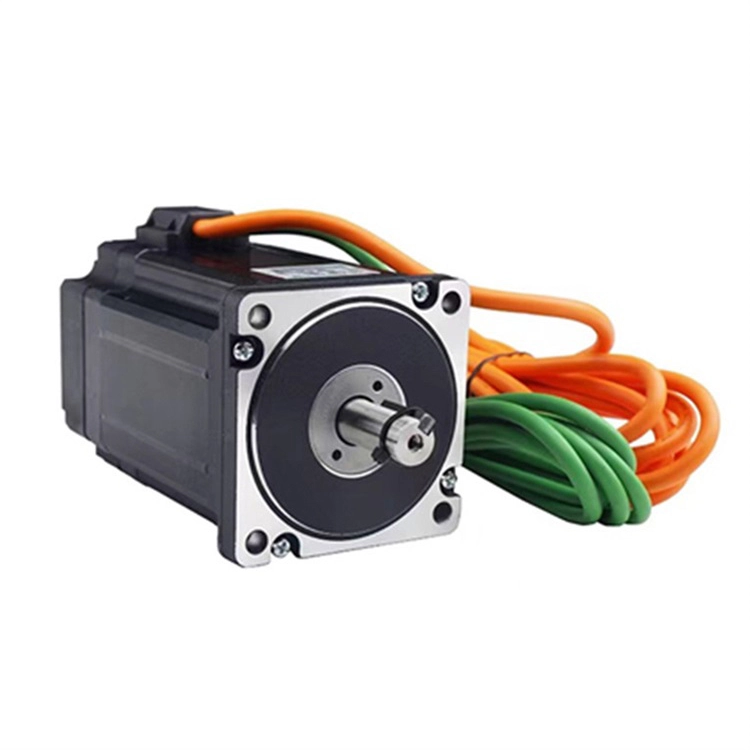

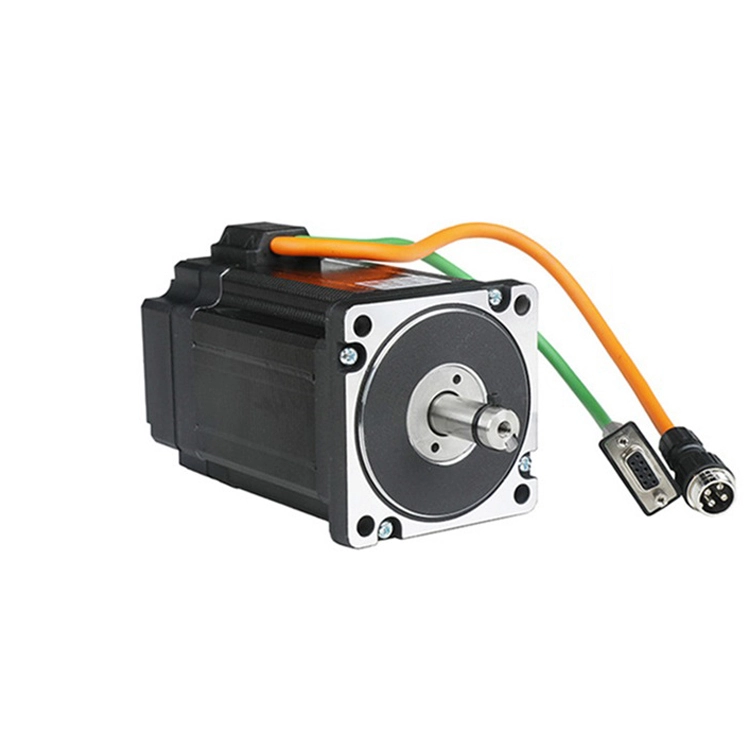

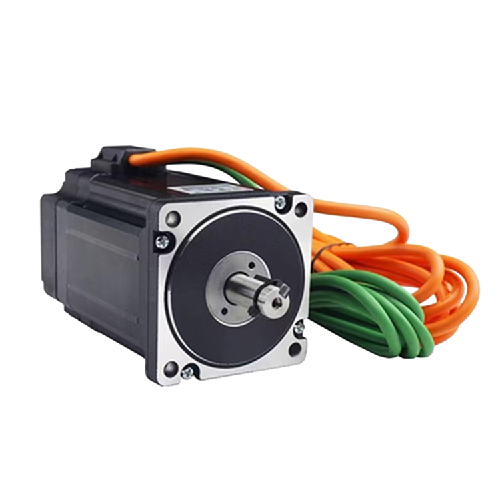

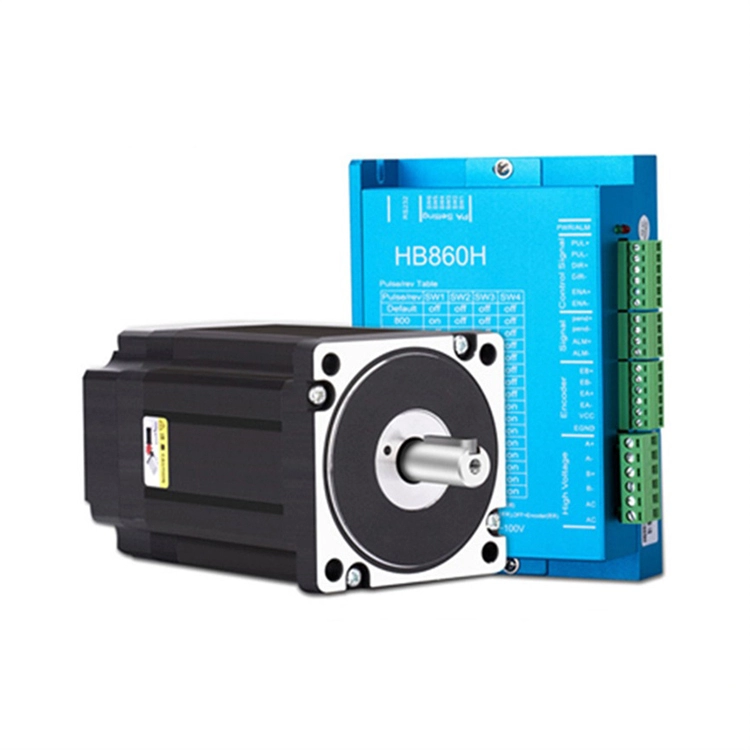

NEMA 34 1.8° 2-Phase Hybrid
Closed Loop Stepper Motor with Driver
- High Torque
- Low Current Draw
- High Precision
- Low Noise and Vibration
Support
Customization
Factory
Direct Sales
Product Feature
High Precision
Delivers a step angle of 1.8°, ensuring accurate and precise positioning for various applications.
Compact Design
Features a compact NEMA 34 frame size, making it ideal for applications with space constraints.
High Torque
Ensure that the motor can output high torque during operation, providing solid guarantee for the stable operation of the equipment.
Durable Construction
Constructed with high-quality materials, ensuring long-lasting performance and reliability.
Low Noise and Vibration
Designed to operate with minimal noise and vibration, providing smooth and stable performance.
Easy Integration
Standard NEMA 14 frame size allows for easy integration into existing systems and designs.
Product Applications
Medical Equipment
CT Scanners,X-Ray Machines,Ultrasound Equipment
CNC Machine
CNC Lathe Machine,Fiber Laser Cutting Machine,Vertical Machining Center
Automated Equipment
Handling Robots,Conveyor Belts,AGV Vehicles
Communications Equipment
Walkie-talkie,Wireless Headset,Car Satellite
New Energy
Solar Water Heater,Automatic Charging Pile,Vehicle System
Industrial Machinery
3D Printers,Textile Machinery,Robots
