Nema 34 9.0Nm 6A Closed Loop Stepper Kit
$119.15

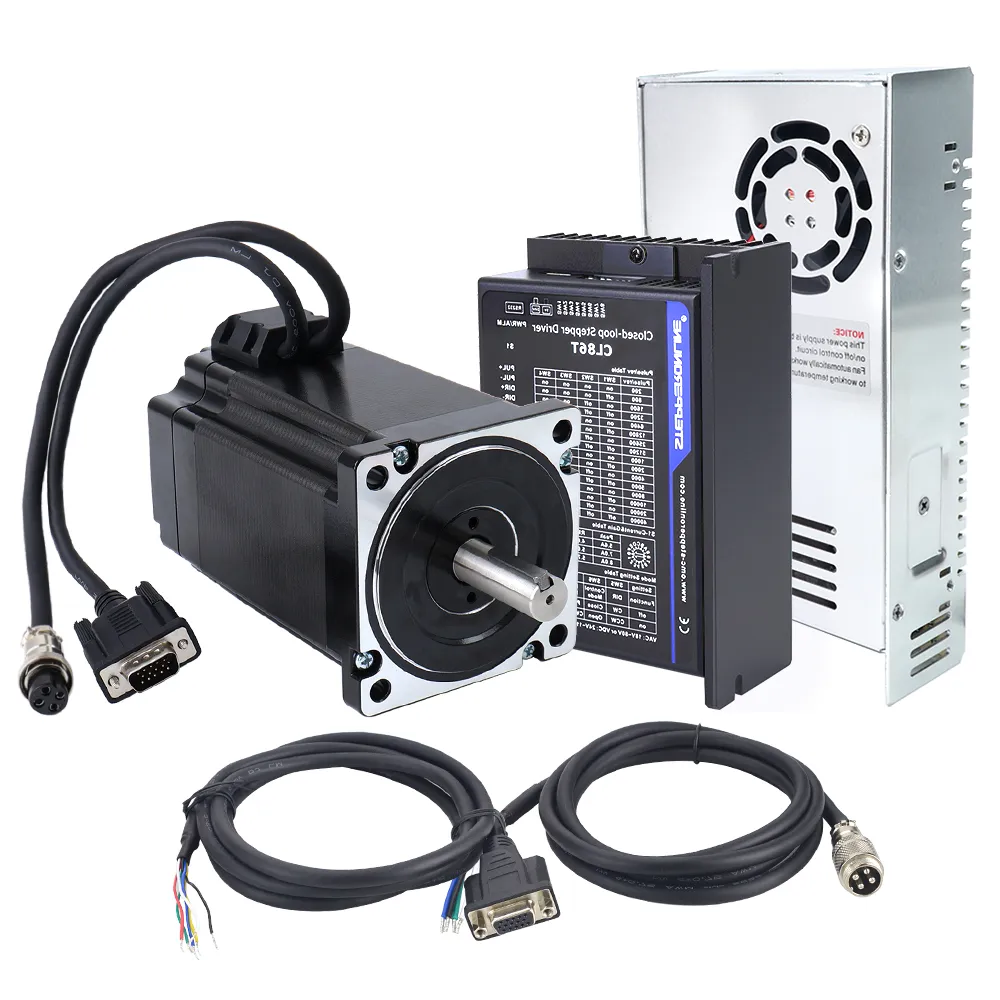

The Nema 34 9.0Nm 6A Closed-Loop Stepper Kit combines the benefits of a high-torque Nema 34 motor with closed-loop control technology, ensuring exceptional accuracy and reliability in demanding applications. This kit is designed to enhance performance and eliminate the risk of missed steps, providing seamless motion control and increased productivity.
SPECIFICATIONS

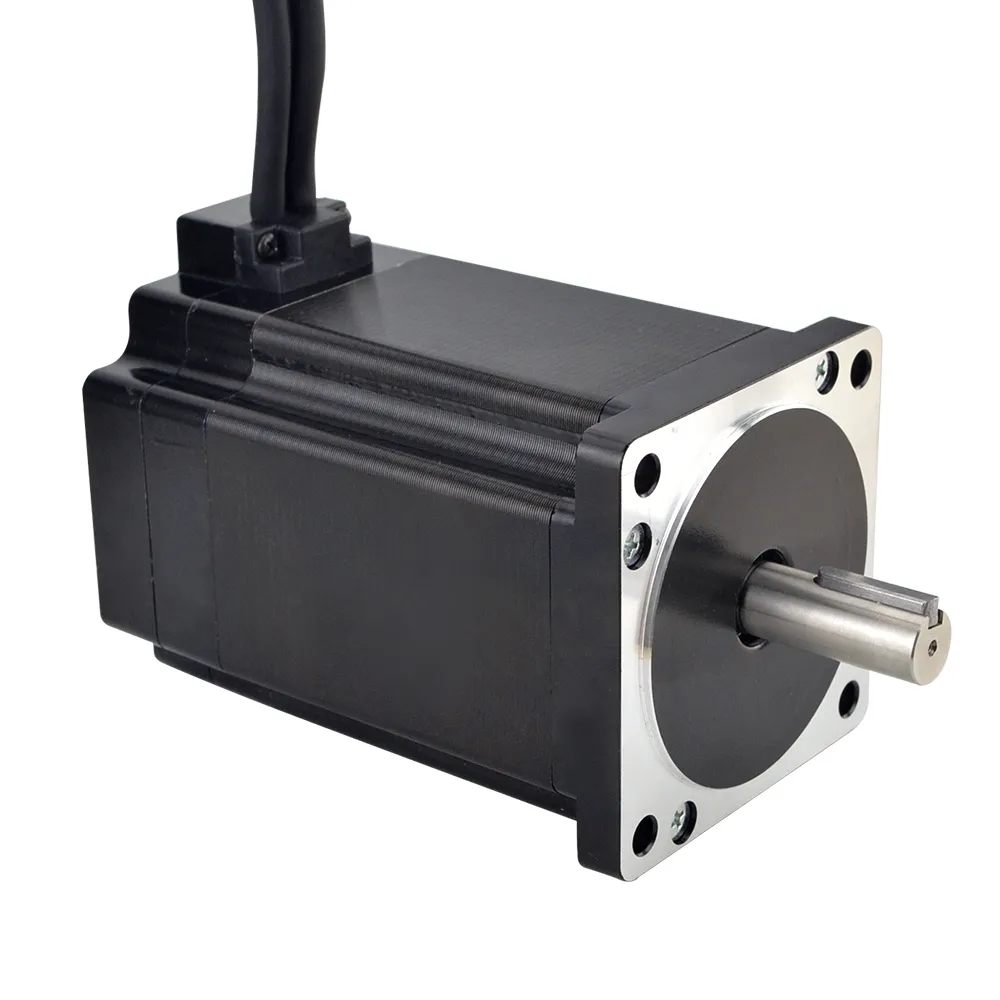

Motor Specification:
| Part Number | 34HS46-6004D-E1000 |
| Number of Phases | 2 |
| Holding Torque | 9.0 Nm (1274.5 oz.in) |
| Rated Current/Phase | 6.0 A |
| Phase Resistance | 0.4 ohms |
| Inductance | 3.6 mH ± 20% (1 KHz) |
| Frame Size | 86 x 86 mm |
| Body Length | 137 mm |
| Shaft Diameter | Φ14 mm |
| Shaft Length | 37 mm |
| Keyway Shaft Length | 25 mm |
| Lead Length | 300 mm |
Encoder Specification:
| Output Circuit Type | Differential type |
| Encoder Type | Optical Incremental |
| Encoder Resolution | 1000 PPR (4000 CPR) |
| Output Signal Channels | 2 channels |
| Supply Voltage Min | 4V |
| Supply Voltage Max | 5V |
| Output Current | 100 mA |
| Output High Voltage | 5V |
| Output Low Voltage | 4.5V |
| Output Frequency Max | 60 kHz |

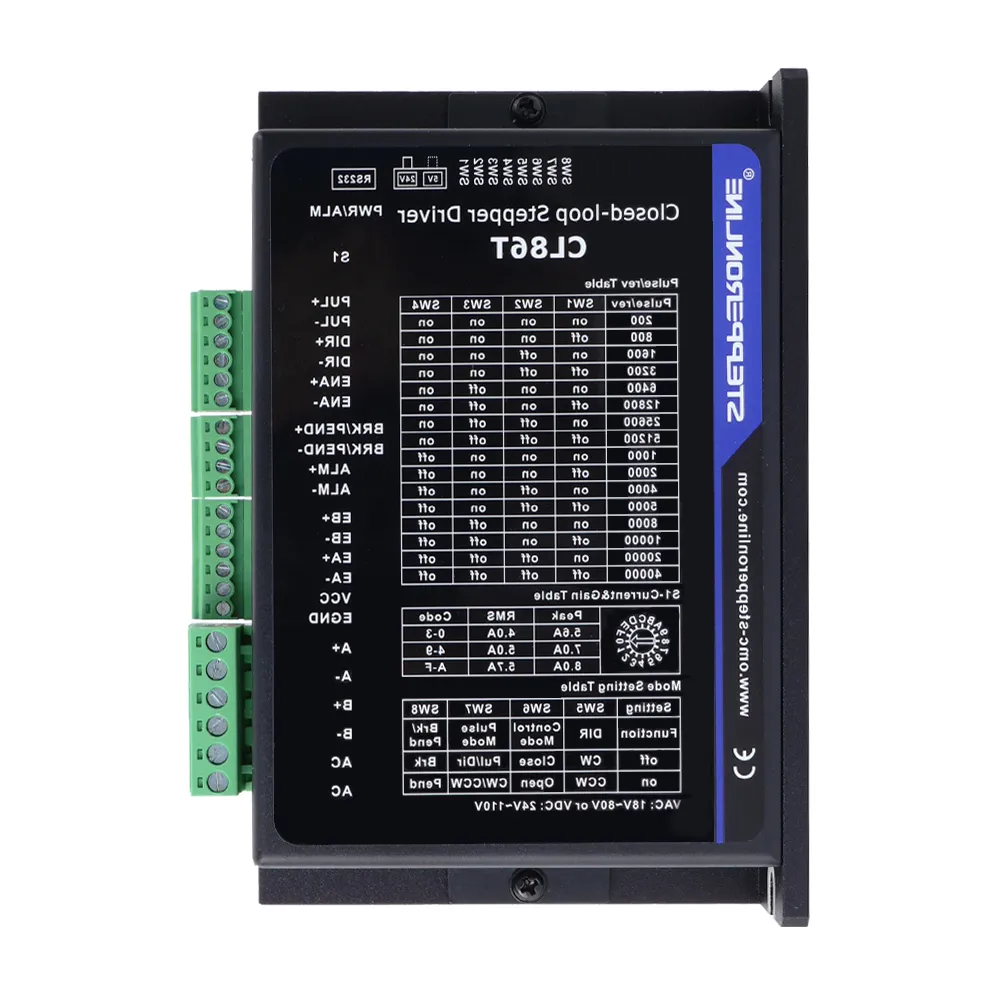

Driver Specification:
| Part Number | CL86T |
| Output Peak Current | 0~8.2A |
| Input Voltage | +18~80VAC/24~110VDC |
| Control Signal Voltage | 5V (Add 2KΩ resistor to apply 24V) |
| Logic Signal Current | 7~16mA (Typical 10mA) |
| Pulse Input Frequency | 0~200 kHz |

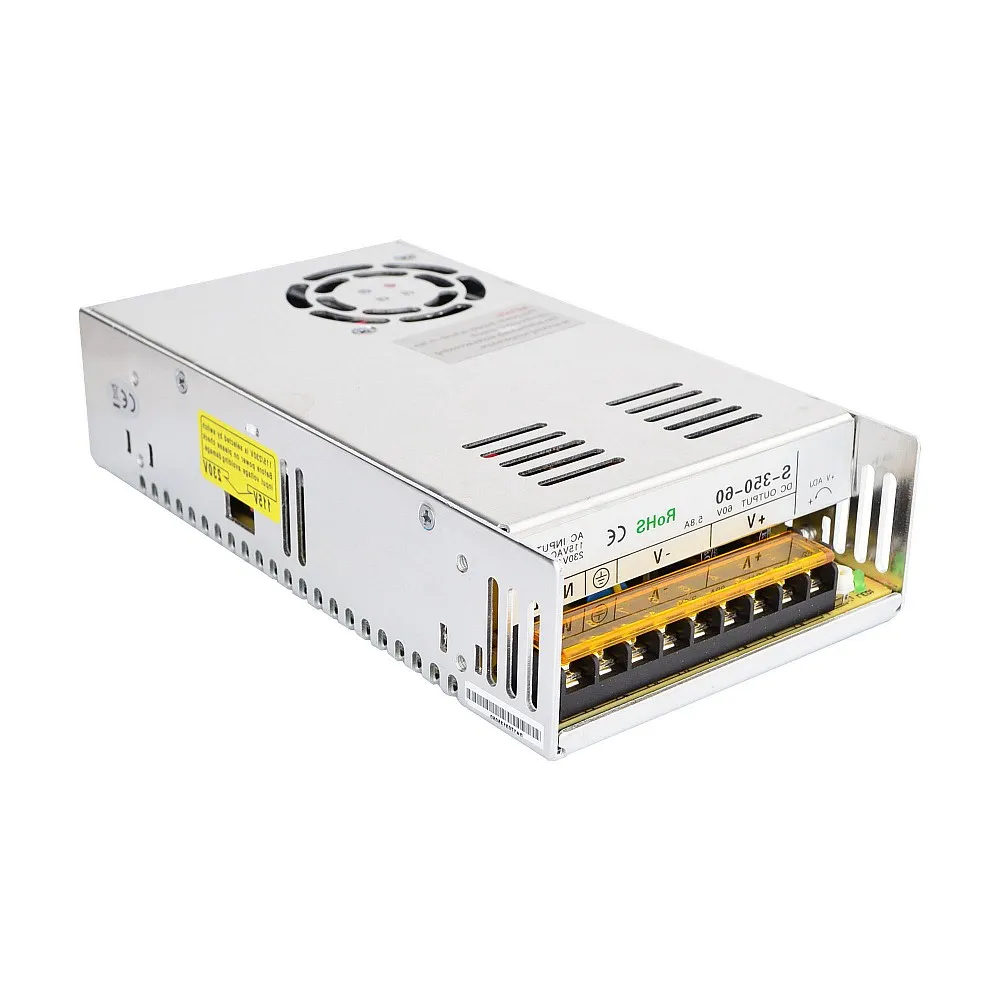

Power Specification:
| Part Number | S-350-60 |
| Output | 60V DC 5.9A |
| AC Input Voltage Range | 93~132V/176~264VAC |
| AC Selection | 115V/230V AC selected by switch |
| Dimensions | 215 x 115 x 50 mm (L x W x H) |
| Features | High efficiency low cost, forced air cooling by built-in DC fan, low output ripple and yawp, over current, over voltage, short circuit and overheat protections |
