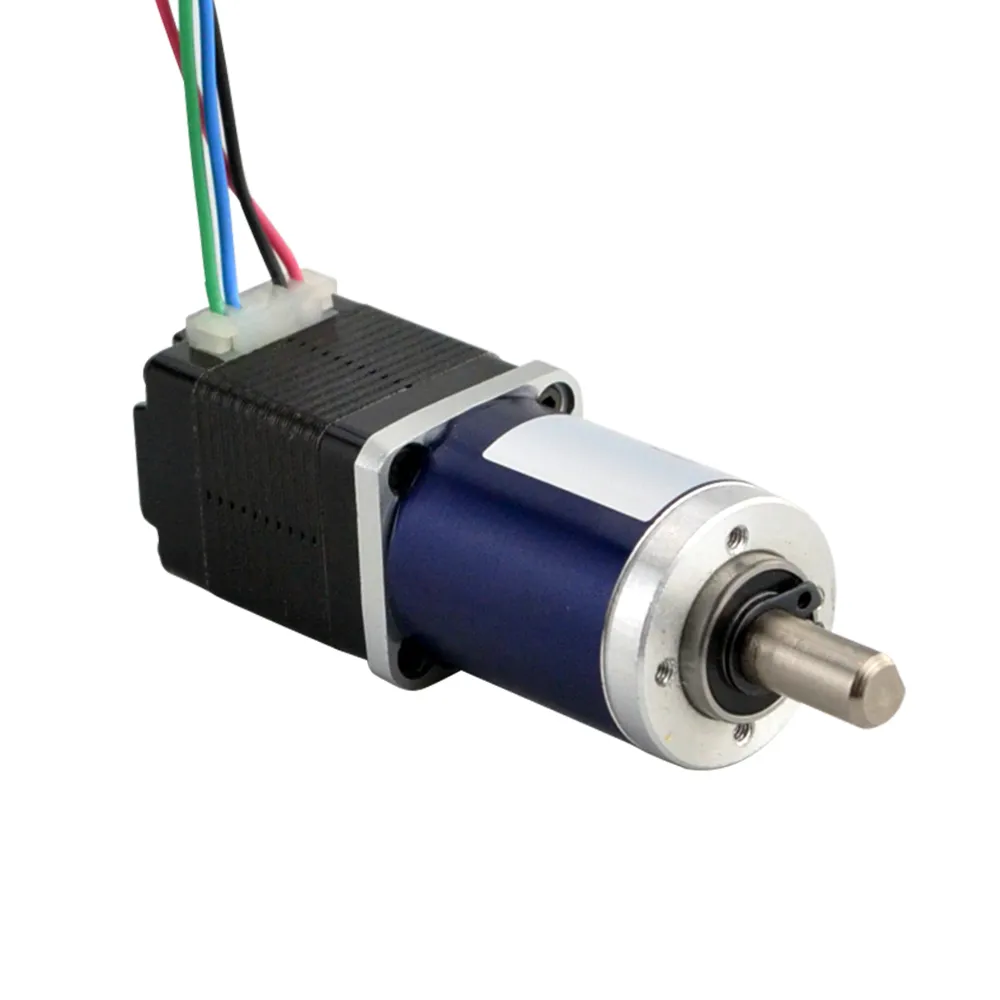

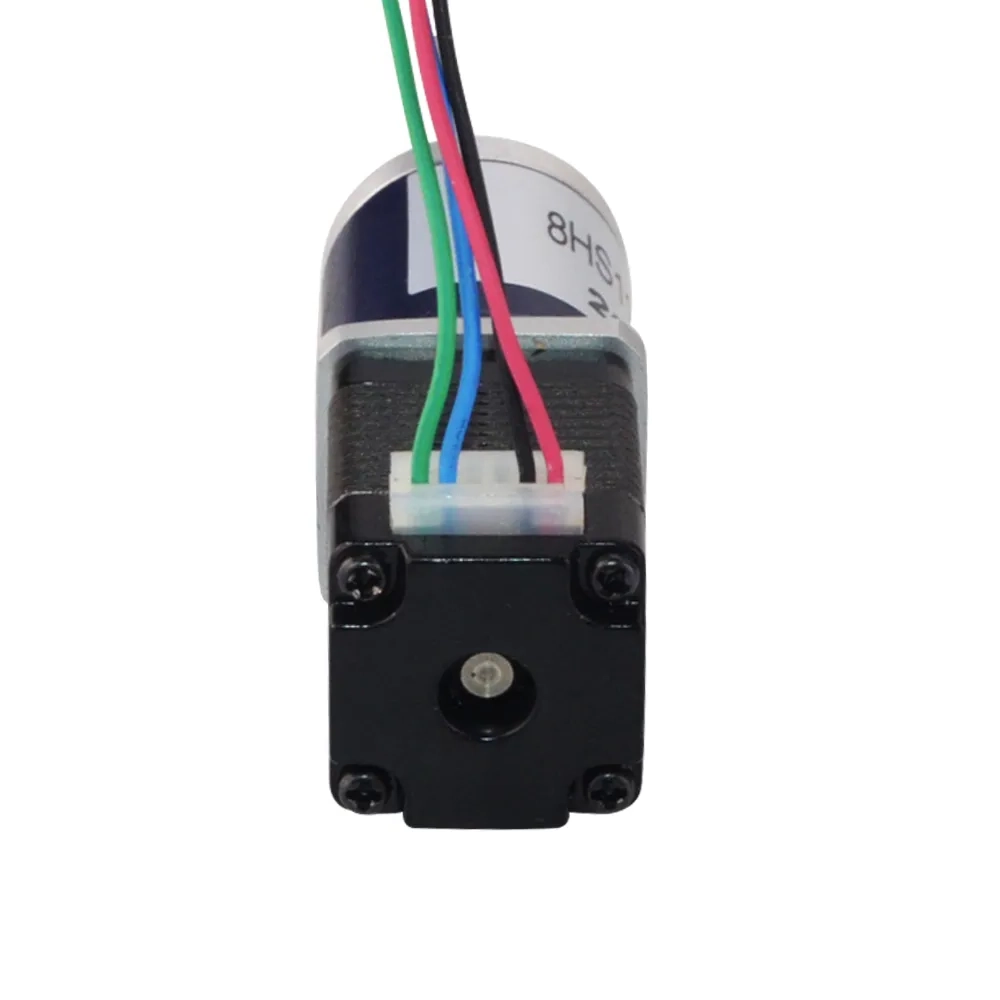

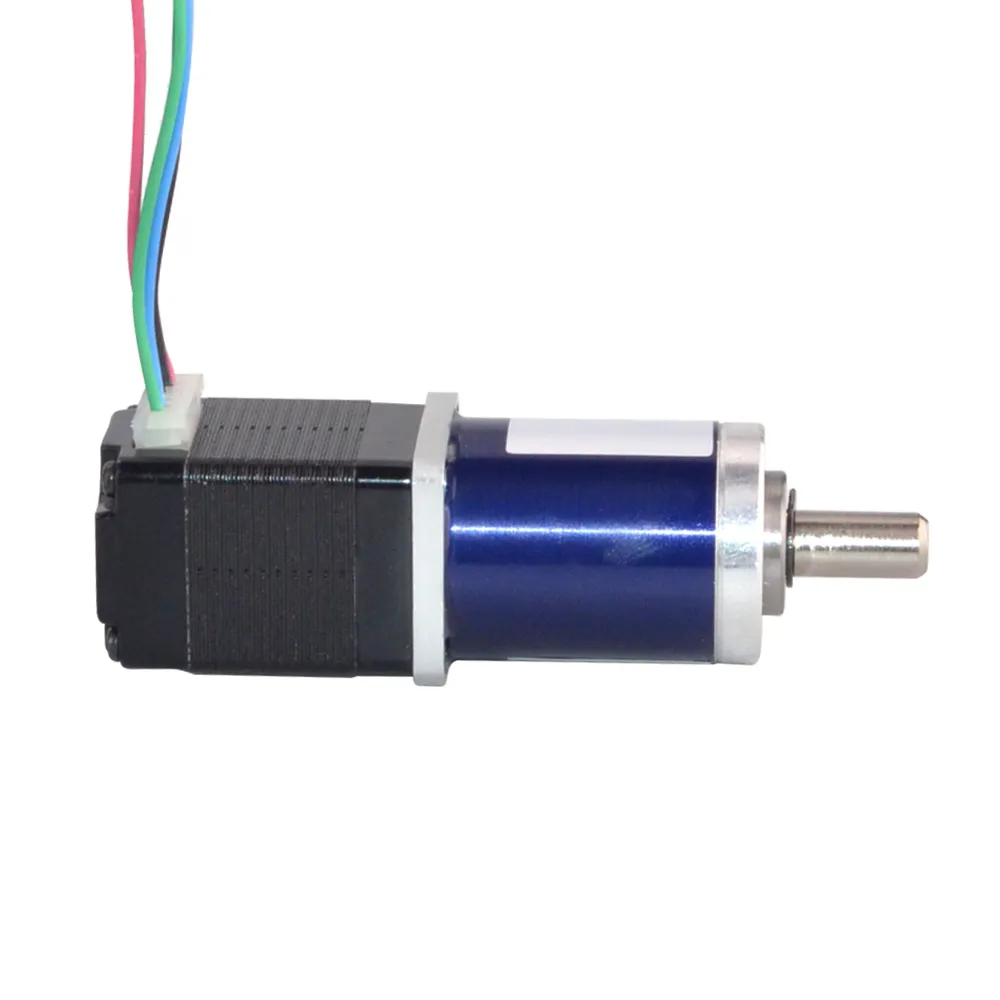

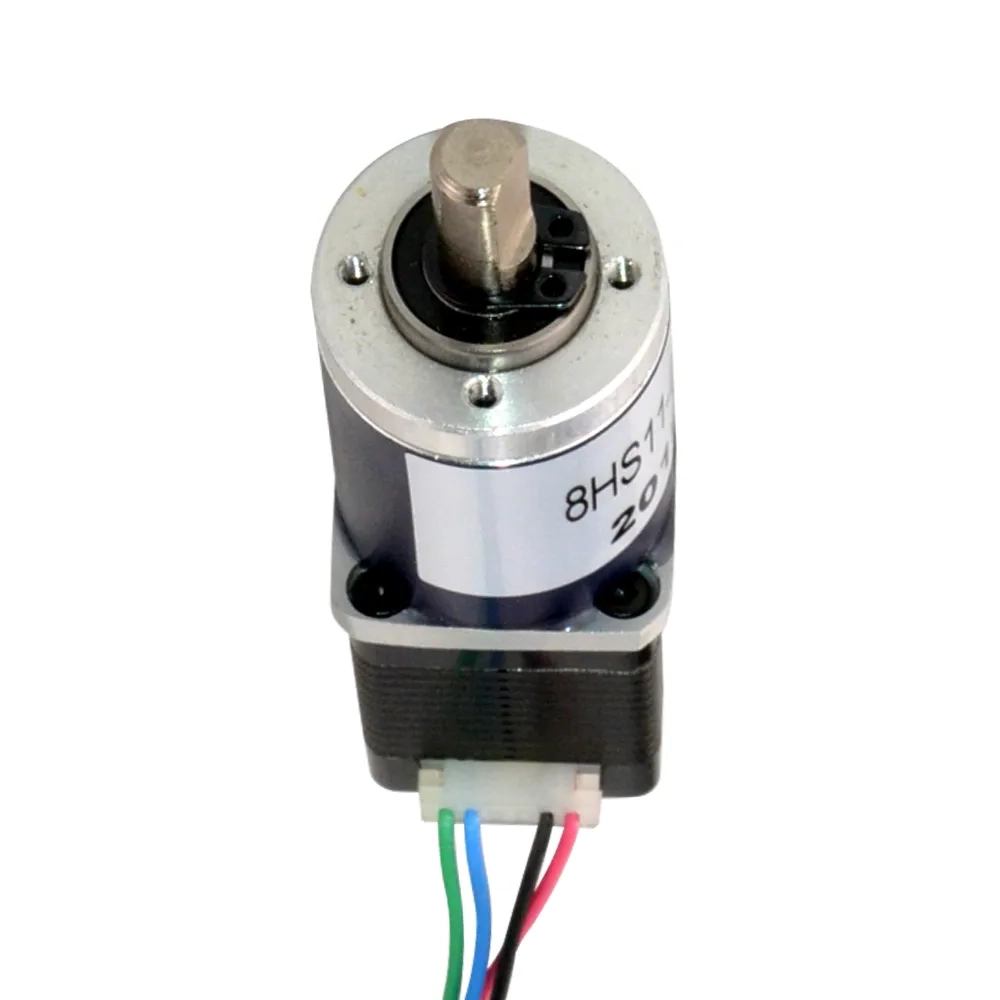

Nema 8 0.02deg 0.5Ncm 0.2A Stepper Motor
$42.82
Nema 8 0.02deg 0.5Ncm 0.2A Stepper Motor, a miniature powerhouse that brings unprecedented precision to your automation projects. With its ultra-fine step resolution and high torque, this motor is perfect for applications requiring intricate and accurate motion control. Whether you're building precision instruments, optical devices, or compact robotics, this stepper motor will revolutionize your automation experience with its exceptional performance and reliability.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 8HS11-0204S-PG90 |
| Motor Type | Bipolar Stepper |
| Step Angle | 0.02 deg |
| Holding Torque without Gearbox | 1.4Ncm (1.98oz.in) |
| Rated Current/phase | 0.2A |
| Phase Resistance | 24 ohms |
| Inductance | 8mH ±20% (1KHz) |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 90.25:1 |
| Efficiency | 70% |
| Backlash at No-load | <=3deg |
| Max. Permissible Torque | 0.5Nm (70.8oz.in) |
| Moment Permissible Torque | 1Nm (141.6oz.in) |
| Shaft Maximum Axial Load | 5N |
| Shaft Maximum Radial Load | 25N |
Physical Specification
| Frame Size | 20 x 20mm |
| Gearbox Length | 30.95mm |
| Shaft Diameter | Φ6mm |
| Shaft Length | 15mm |
| D-cut Length | 9mm |
| Number of Leads | 4 |
| Lead Length | 300mm |
| Weight | 86g |
