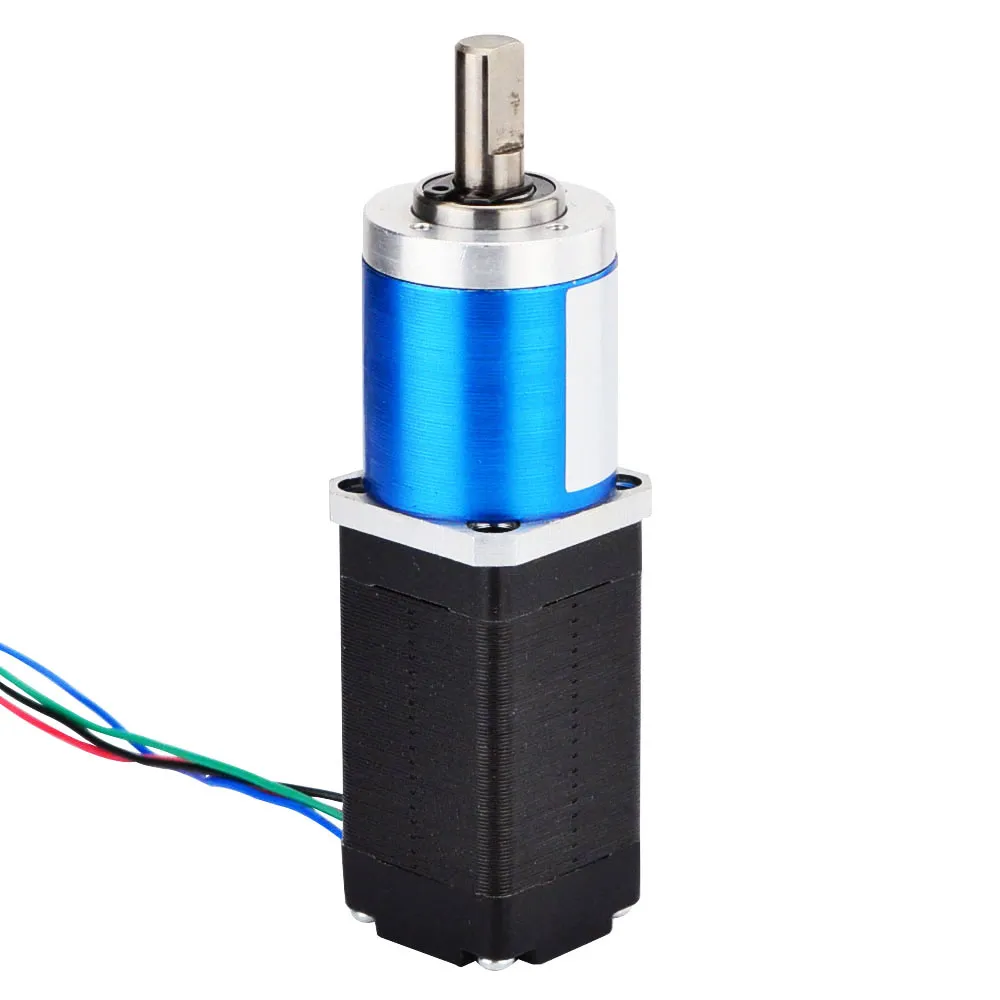

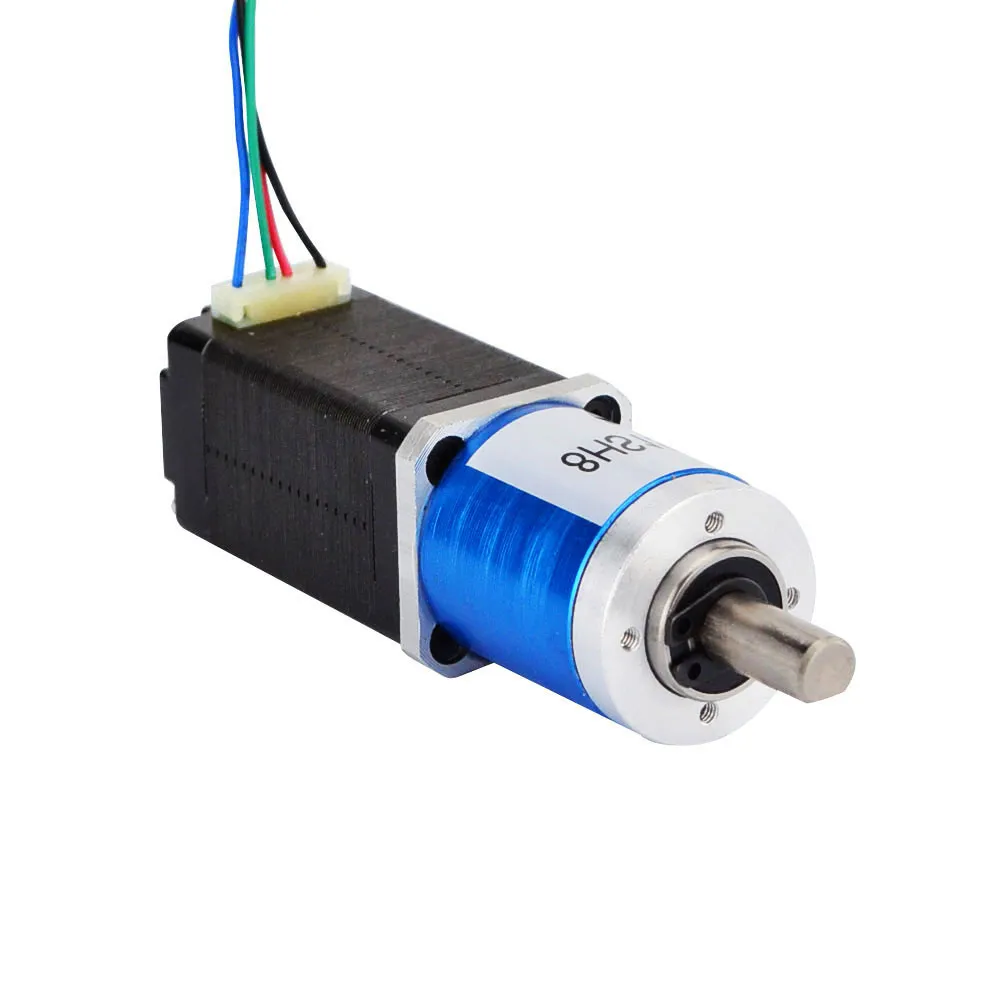

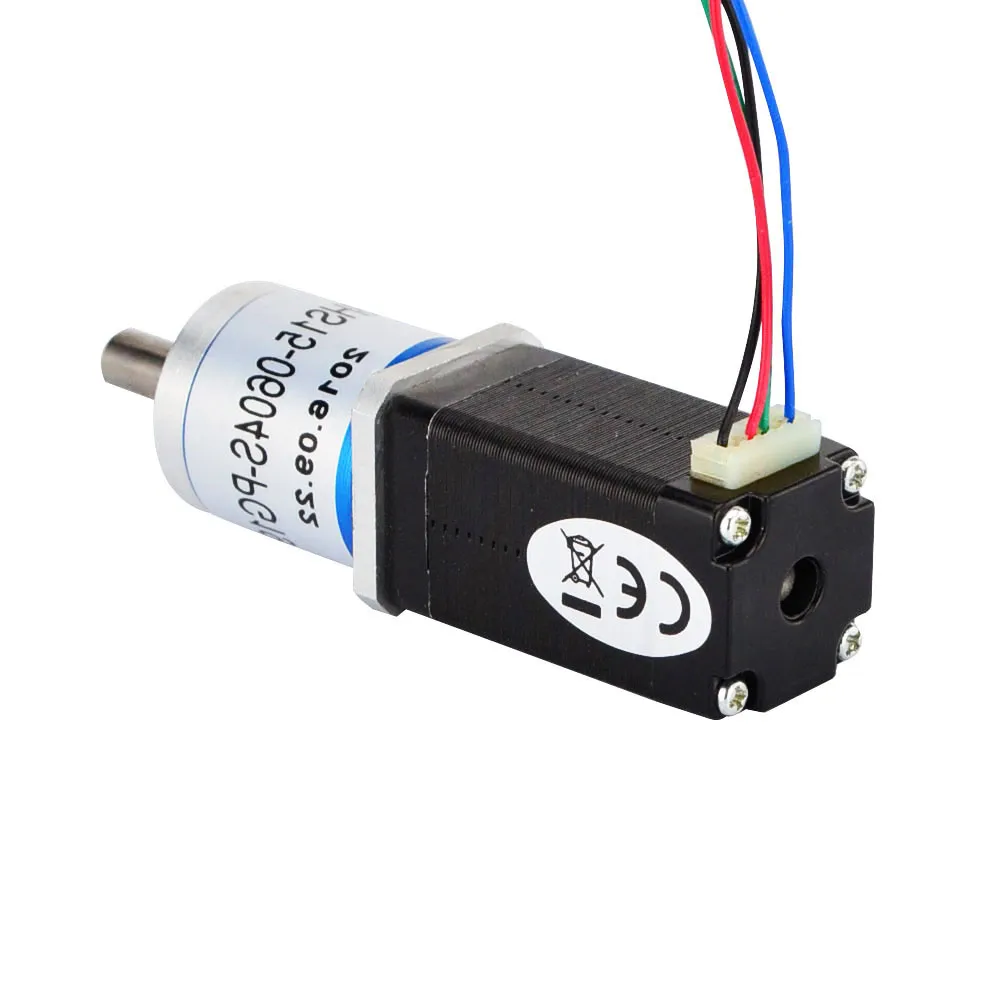

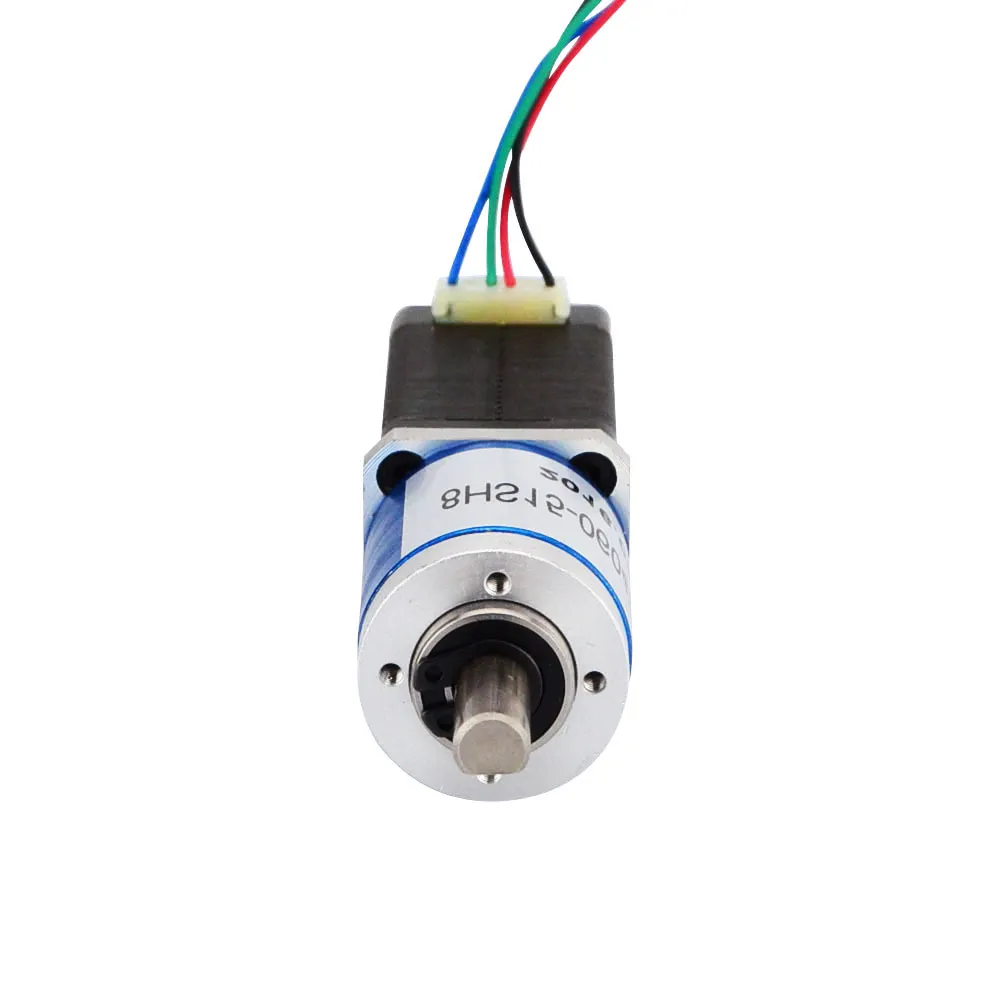

Nema 8 0.095deg 4Ncm 0.6A Stepper Motor
$42.82
Experience precise and powerful motion control with the Nema 8 0.095deg 4Ncm 0.6A Stepper Motor. This compact motor delivers exceptional accuracy and torque, making it ideal for applications requiring fine positioning and smooth operation. Upgrade your automation projects with this reliable stepper motor, designed to enhance performance and efficiency.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 8HS15-0604S-PG19 |
| Motor Type | Bipolar Stepper |
| Step Angle | 0.095 deg |
| Holding Torque without Gearbox | 4 Ncm (5.66 oz.in) |
| Rated Current/phase | 0.6A |
| Phase Resistance | 10 ohms |
| Inductance | 5.5mH ± 20% (1KHz) |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 19:1 |
| Efficiency | 80% |
| Backlash at No-load | <=3 deg |
| Max. Permissible Torque | 0.5 Nm (70.8 oz.in) |
| Moment Permissible Torque | 1 Nm (141.6 oz.in) |
| Shaft Maximum Axial Load | 5N |
| Shaft Maximum Radial Load | 25N |
Physical Specifications
| Frame Size | 20 x 20mm |
| Motor Length | 38mm |
| Gearbox Length | 29.95mm |
| Shaft Diameter | Φ6mm |
| Shaft Length | 15mm |
| D-cut Length | 9mm |
| Number of Leads | 4 |
| Lead Length | 300mm |
| Weight | 130g |
