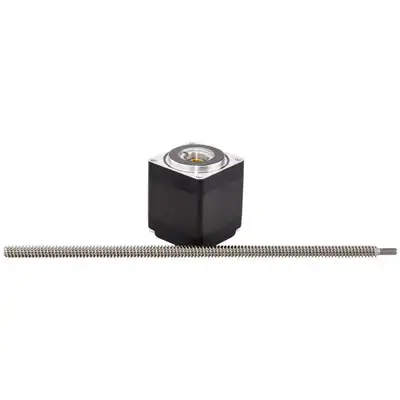

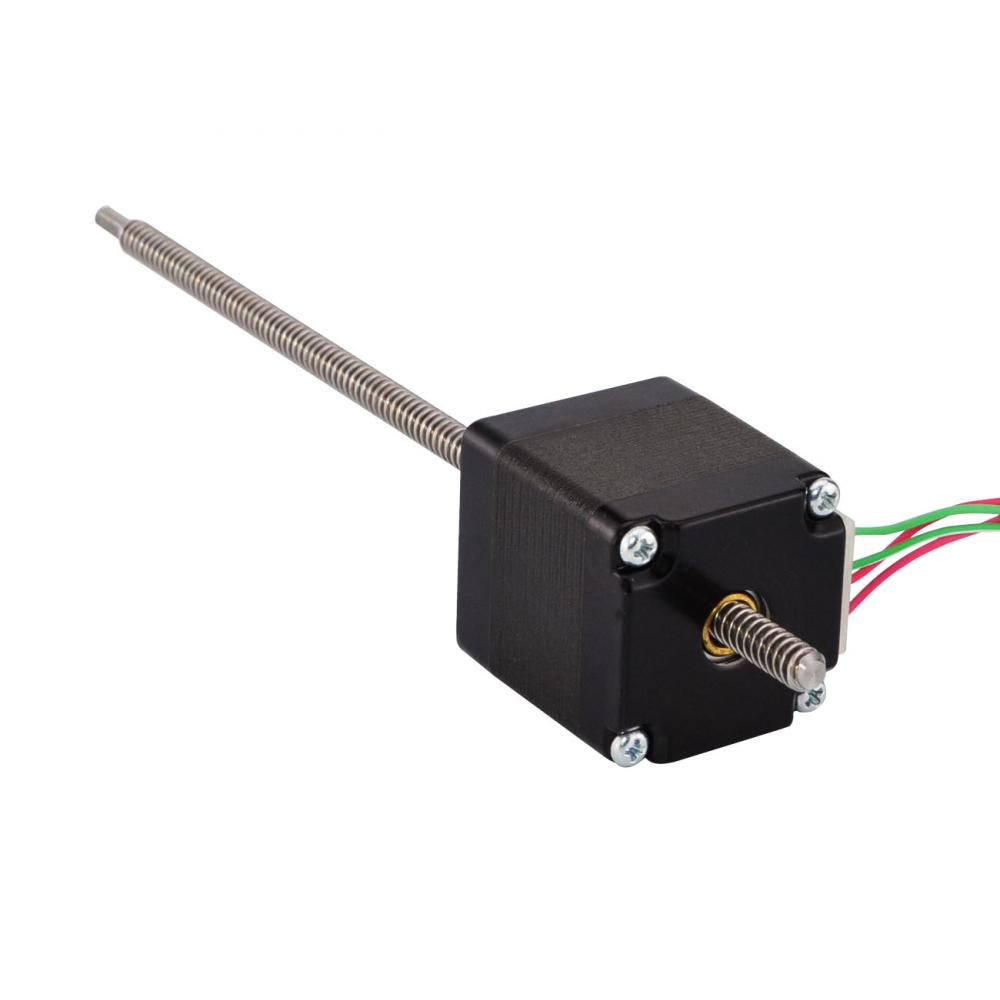

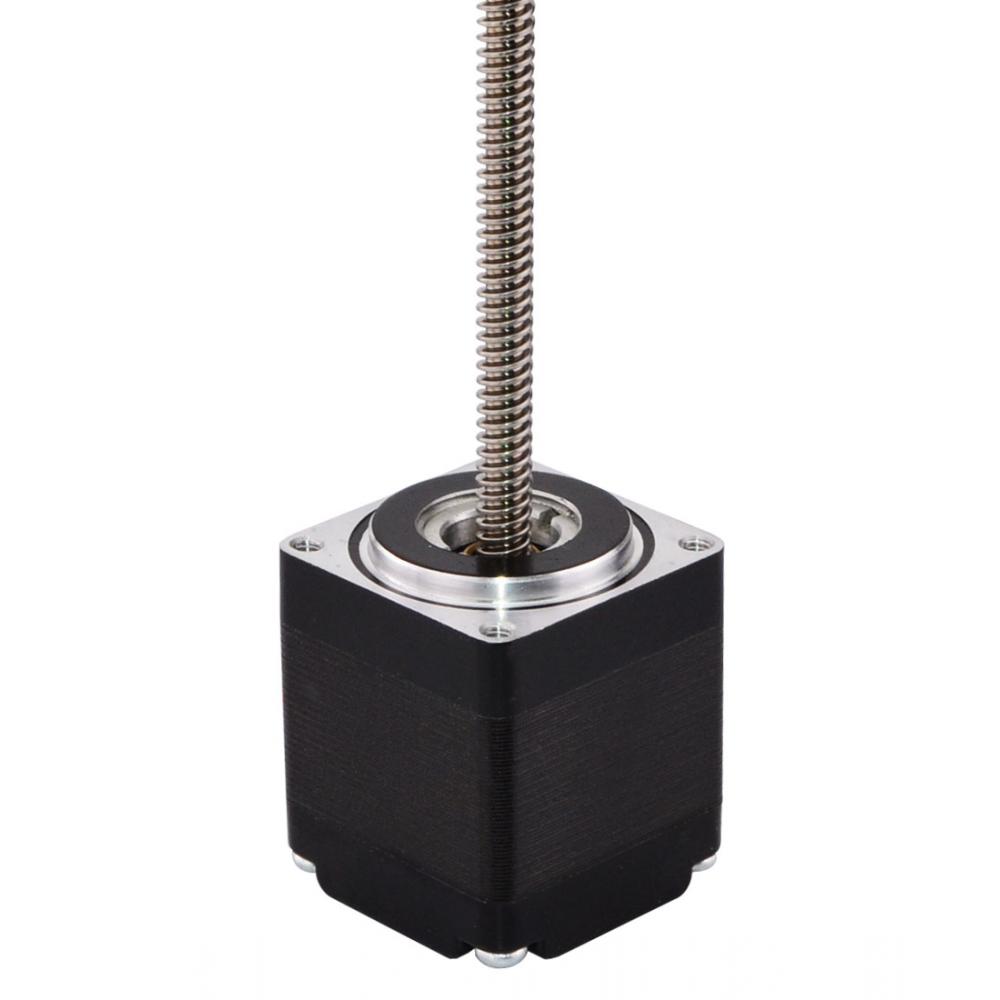

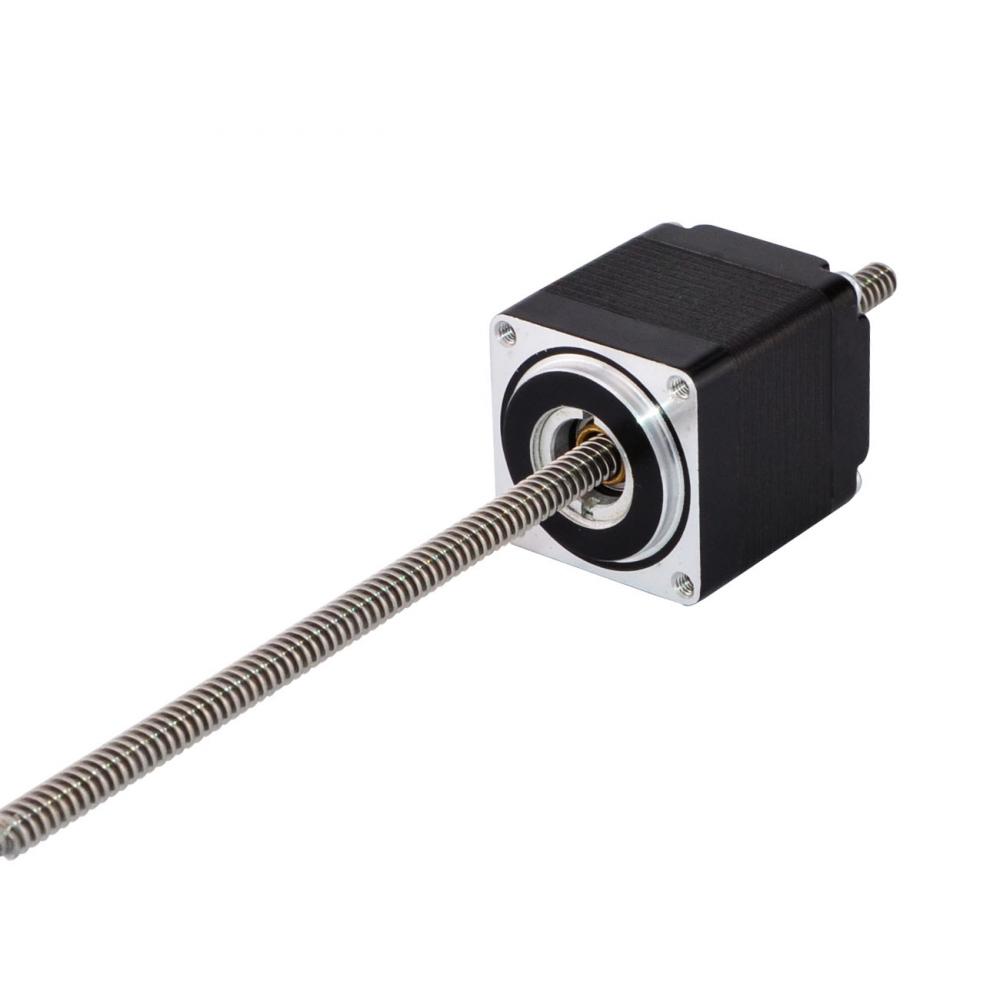

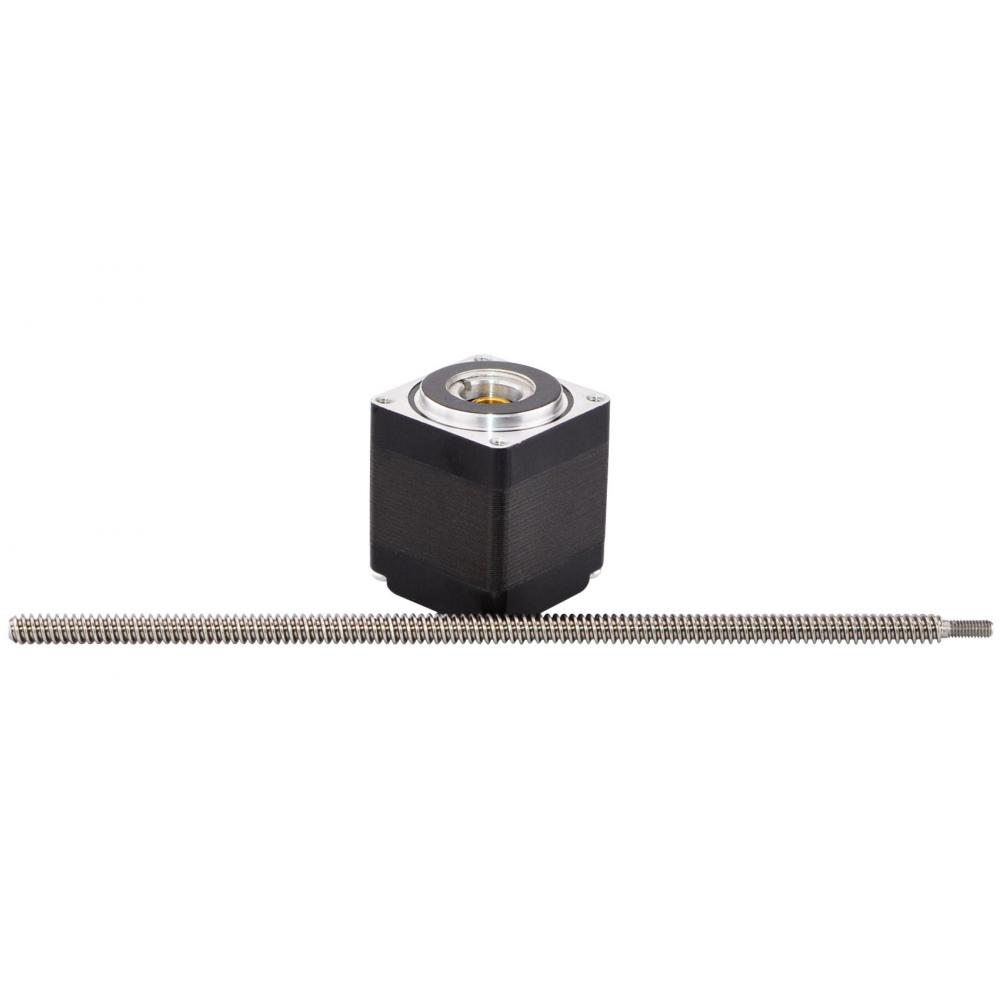

Nema14 35HSL Linear Stepper Motor

Name: Nema14 35HSL Linear Stepper Motor
Availability: InStock

This Nema14 35HSL Linear Stepper Motor offers a holding torque of 0.2Nm and a hybridized design combining the features of a linear stepper motor with a permanent magnet motor. It is lightweight, has low cogging torque, and produces low acoustic noise.

Get a Quote Leave a Message

Step Angle()1.8°

Temperature Rise()80

Ambient Temperature()-20℃ Max~+50℃

SPECIFICATIONS

35HSL Liner Stepper Motor（Nema14 Linear Stepper Motor)
Diameter	Lead Distance(mm)	Start	Step Length(mm)	Aplicable Motor
M5	1.6	2	0.008	35HSL-E，35HSL-N
Tr5	2	2	0.01	35HSL-E，35HSL-N
Tr6.5	3	2	0.015	35HSL-E，35HSL-N
Tr8	1	1	0.005	35HSL-E
Tr8	2	1	0.01	35HSL-E
Tr8	4	2	0.02	35HSL-E
Tr8	8	4	0.04	35HSL-E

Product Feature

Related Products

70MM 15W Micro AC Gear Motor

Model Type
Voltage(V)	110/220/380
Output(W)	15
Size(mm)	70
Speed(RPM)	1400/1680

$112-$127

Learn More

16Inch 42-55km/h Hub Motor Kit with Disc Brake

Model Type
Voltage(V)	48/60
Output(W)	500
Size(mm)	16
Speed(RPM)	42/50/55

$95.00-$193.00

Learn More

Videos

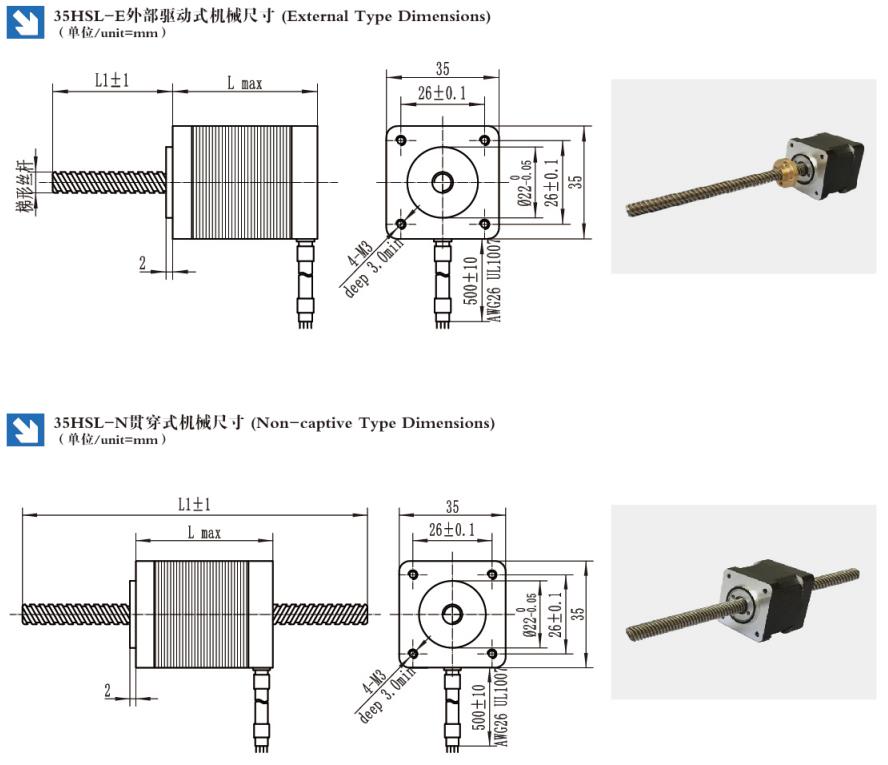

DIMENSIONS
