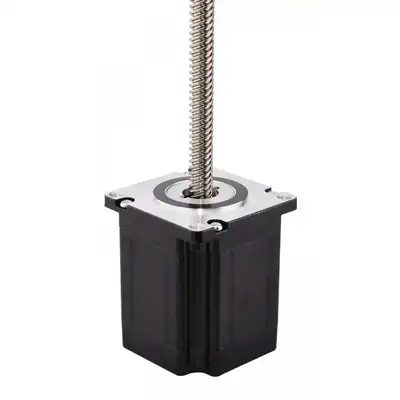

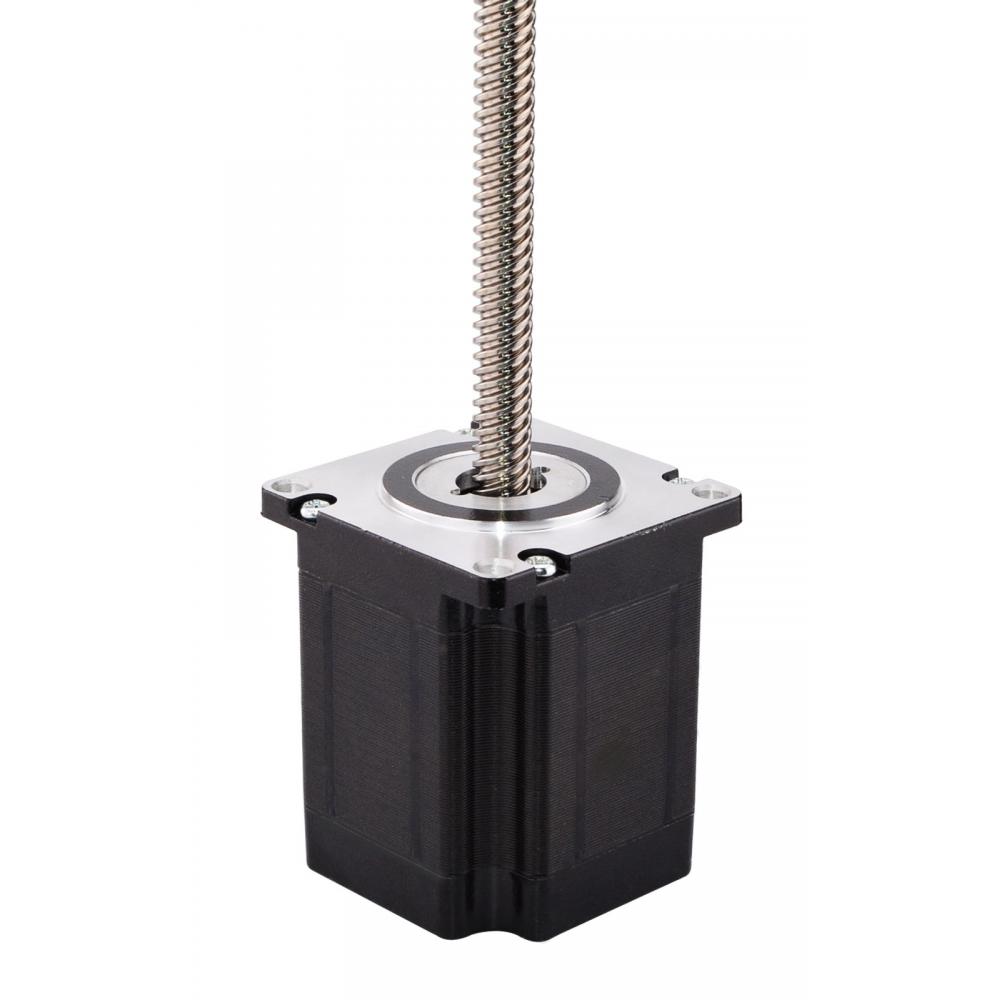

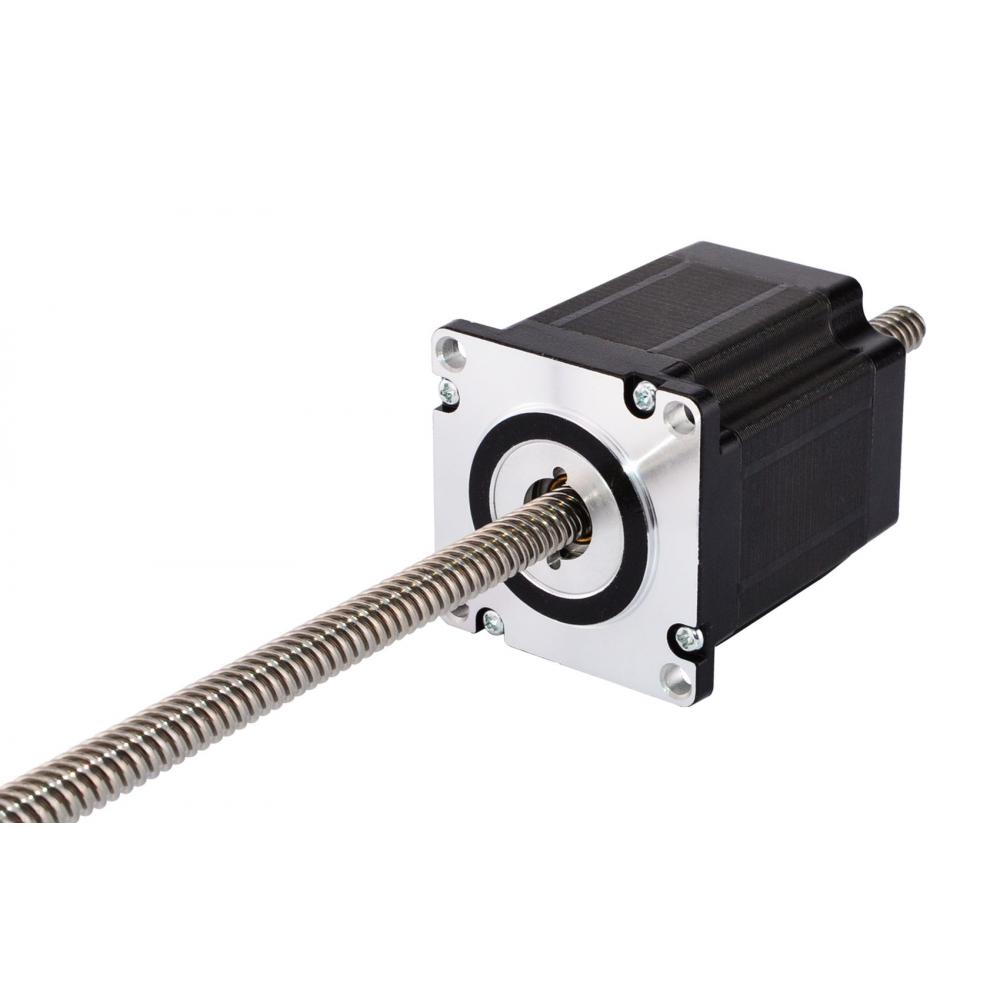

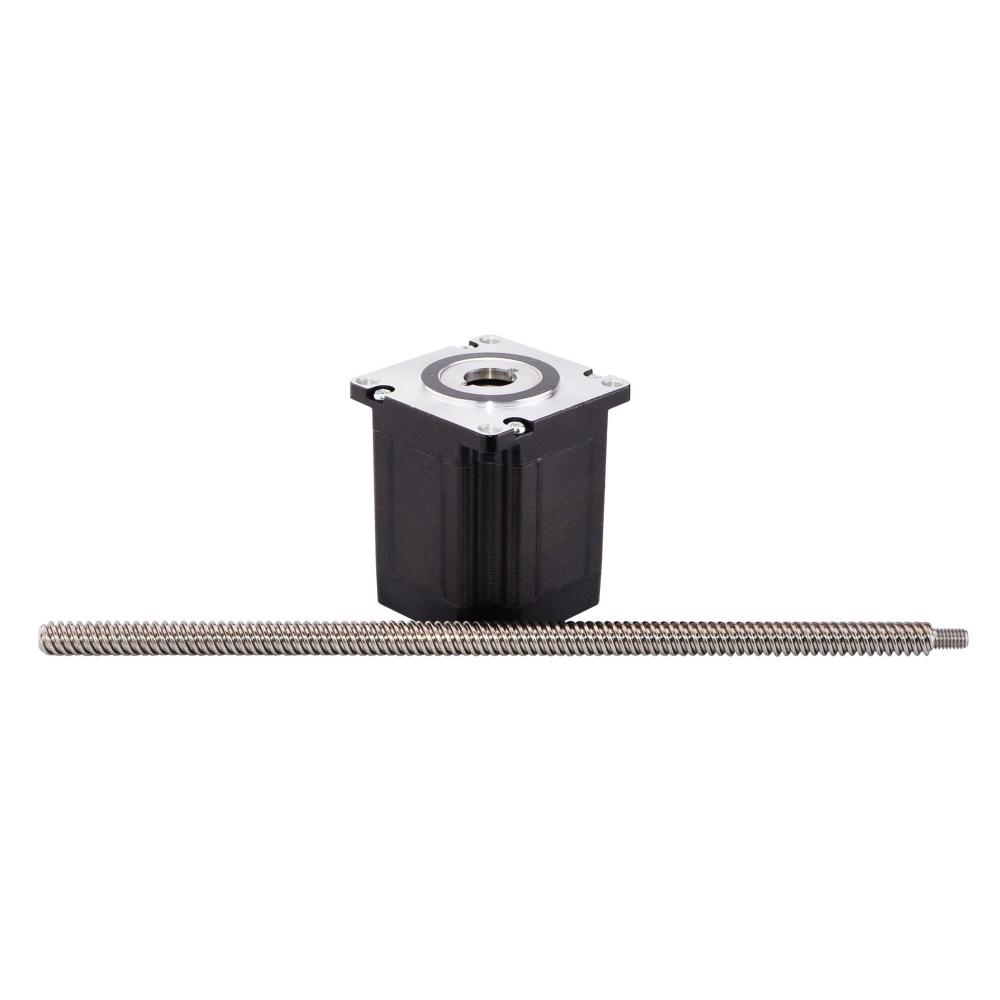

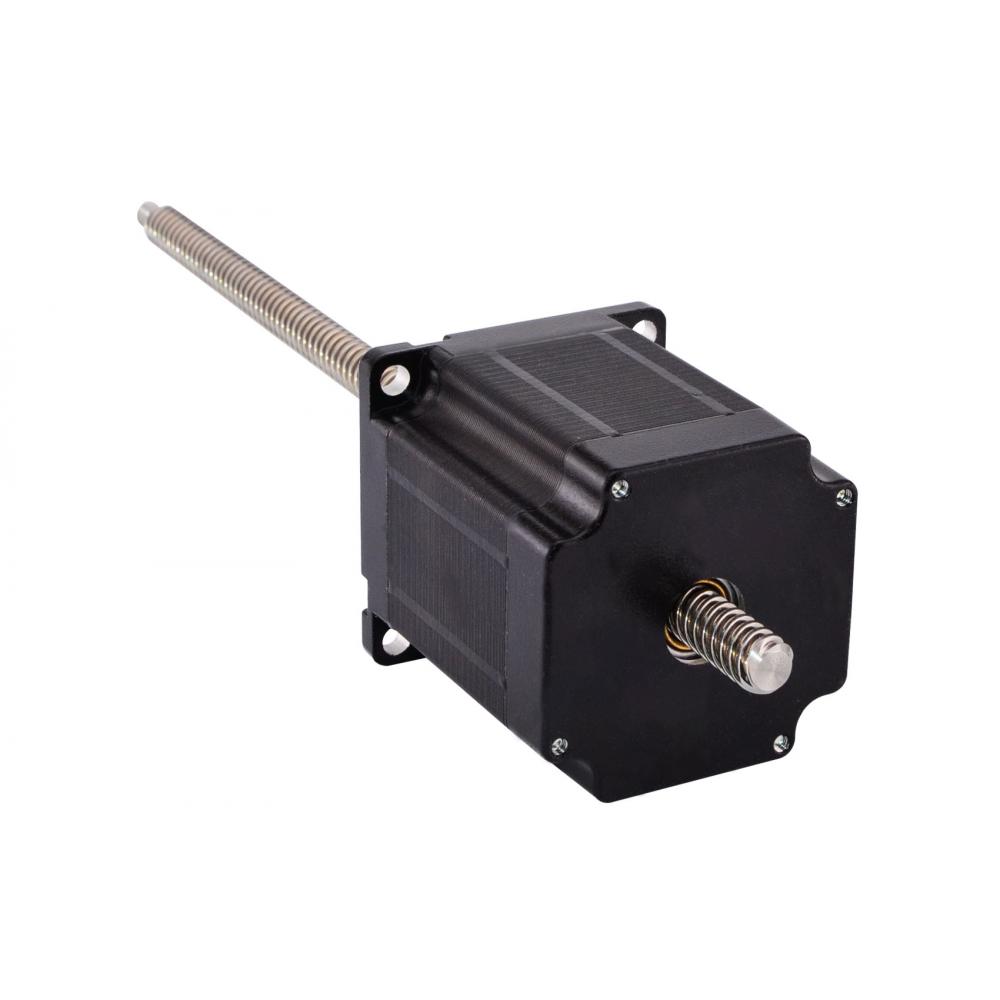

Nema23 57HSL Linear Stepper Motor
$
This Nema23 57HSL Linear Stepper Motor offers excellent performance and longevity in a range of industrial applications. Its low-inductance design is capable of high speeds, up to 6000rpm, and features a maximum torque of 4.5Nm. With its durable housing and precision bearings, this motor provides reliable, maintenance-free operation.
SPECIFICATIONS
| 57HSL (Nema23 Linear Stepper Motor) | ||||
| Diameter | Lead Distance(mm) | Start | Step Length(mm) | Aplicable Motor |
| Tr8 | 1 | 1 | 0.005 | 57HSL-E，57HSL-N |
| Tr8 | 2 | 1 | 0.01 | 57HSL-E，57HSL-N |
| Tr8 | 4 | 2 | 0.02 | 57HSL-E，57HSL-N |
| Tr8 | 8 | 4 | 0.04 | 57HSL-E，57HSL-N |
| Tr10 | 2 | 1 | 0.01 | 57HSL-E，57HSL-N |
| Tr10 | 4 | 2 | 0.02 | 57HSL-E，57HSL-N |
| Tr12 | 6 | 2 | 0.03 | 57HSL-E |
Product Display
Product Feature
High Precision Linear Motion
Delivers accurate and reliable linear motion, ideal for applications requiring precise positioning.
Robust Construction
Built with high-quality materials, ensuring durability and long-lasting performance in demanding environments.
Integrated Lead Screw
Features an integrated lead screw for smooth and efficient linear movement.
High Torque Output
Provides significant holding torque, suitable for applications requiring strong and consistent force.
Easy Installation
Standard NEMA 23 frame size allows for easy integration and installation into existing systems.
Low Noise and Vibration
Designed to operate with minimal noise and vibration, ensuring smooth and quiet performance.
Energy Efficient
Optimized for low power consumption, providing energy efficiency without compromising performance.
Product Applications
CNC Machines
Ideal for CNC machines, providing precise and reliable linear motion for various machining tasks.
3D Printers
Suitable for 3D printers, ensuring accurate and high-quality prints with precise positioning.
Medical Devices
Used in medical devices that require precise and reliable linear motion control.
Robotics
Applicable in robotic systems, offering precise linear movement for various robotic applications.
Automated Machinery
Perfect for automated machinery that demands consistent and accurate linear motion.
Industrial Automation
Ideal for industrial automation applications, providing efficient and precise linear positioning.
Textile Machinery
Suitable for textile machinery, ensuring smooth and precise control in fabric processing.
