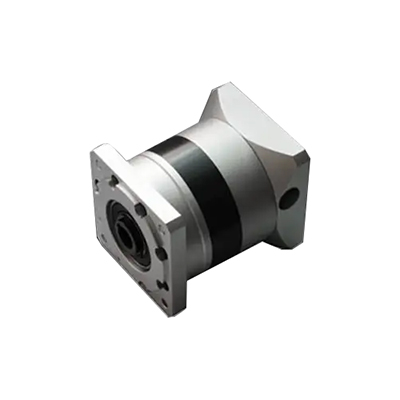

PLFK Series Reducer

Name: PLFK Series Reducer
Availability: InStock

The PLFK Series Reducer is designed to deliver reliable performance and excellent efficiency in a variety of industrial applications. Constructed from durable materials and featuring an innovative design, this reducer delivers 25% more torque than similar products while operating with a quiet noise rating of 60-75 dB.

Get a Quote Leave a Message

Model Type

Lubricating()Synthetic grease lubrication

Noise()60

Average lifetime()20000h

SPECIFICATIONS

Model	Unit	PLFK060	PLFK090	PLFK120	Ratio	Stage
Rated output torque	N.m	16.5	60	148	3	1
		27	86	222	4
		27	94.5	235	5
		19.5	64	158	7
		8.5	39.5	93	10
		/	96	250	12	2
		/	96	250	15
		30	96	250	16
		30	96	250	20
		33	105.5	264	25
		30	96	250	28
		33	105.5	264	35
		30	96	250	40
		33	105.5	264	50
		21.5	71.5	177	70
		37.5	120	310	64	3
		37.5	120	310	80
		37.5	120	310	100
		41.0	132.5	329	125
		37.5	120	310	140
		41.0	132.5	329	175
		37.5	120	310	200
		41.0	132.5	329	250
		37.5	120	310	280
		41.0	132.5	329	350
Emergency stop torque	N.m	2 times Rated output torque
Norminal input speed	rmp	3000	3000	2000
Maximum input speed	rmp	6000	6000	3500
Maximum radial force	N	170	1020	2230
Maximum axial force	N	120	850	1550
Efficiency	%	Single [97%]		Double [95%]
Average lifetime	h	20000
Weight	kg	1.4	4.7	6.9	1
		1.6	5.3	8.9	2
		1.8	5.9	11.2	3
Moment of inertia	kgcm²	0.107	0.4	1.65	3	1
		0.094	0.309	1.22	4
		0.092	0.291	1.15	5
		0.091	0.285	1.13	7
		0.091	0.283	1.11	10
		/	0.4	1.65	12	2
		/	0.309	1.65	15
		0.094	0.291	1.22	16
		0.092	0.291	1.15	20
		0.092	0.291	1.15	25
		0.091	0.285	1.13	28
		0.091	0.285	1.13	35
		0.091	0.2835	1.11	40
		0.091	0.283	1.11	50
		0.091	0.283	1.11	70
		0.092	0.291	1.15	64	3
		0.092	0.291	1.15	80
		0.092	0.291	1.15	100
		0.092	0.291	1.15	125
		0.091	0.291	1.13	140
		0.091	0.291	1.13	175
		0.091	0.283	1.11	200
		0.091	0.283	1.11	250
		0.091	0.283	1.11	280
		0.091	0.283	1.11	350
Noise		60	65	68
Lubricating	Synthetic grease lubrication
levels of protection	IP65

Product Display

Product Feature

High Torque Output

Designed to deliver high torque output, making it suitable for demanding applications.

Compact Design

Features a compact and lightweight design, allowing for easy integration into various systems.

High Efficiency

Engineered to provide high efficiency, reducing energy consumption and operational costs.

Precision Gear Mechanism

Equipped with a precision gear mechanism, ensuring smooth and accurate motion control.

Low Noise Operation

Operates with minimal noise, making it ideal for applications where quiet operation is essential.

Durable Construction

Constructed from high-quality materials to ensure durability and long-lasting performance.

Easy Installation

Designed for easy installation and maintenance, with user-friendly features for quick setup.

Product Applications

Automation Systems

Ideal for use in automation systems that require precise and reliable motion control.

Robotics

Suitable for robotic applications, providing accurate movement and positioning.

Conveyor Systems

Used in conveyor systems to ensure efficient and smooth operation.

Machine Tools

Applicable in machine tools for high precision and stable performance.

Packaging Machinery

Perfect for packaging machinery, offering reliable and efficient motion control.

Printing Equipment

Used in printing equipment to achieve high precision and consistent results.

Medical Devices

Suitable for medical devices that require precise and quiet operation.

Videos

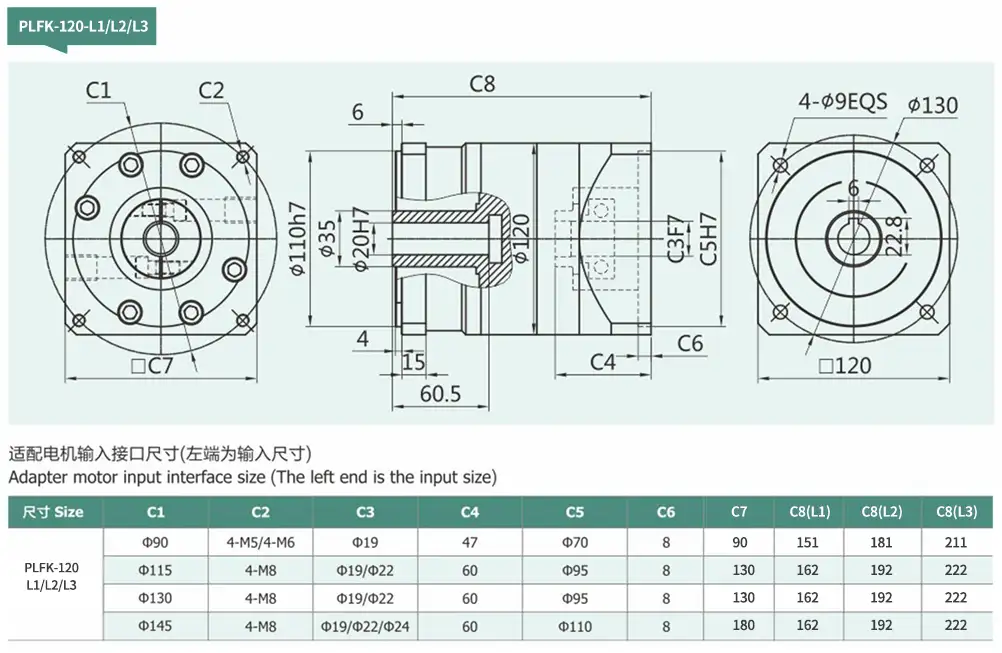

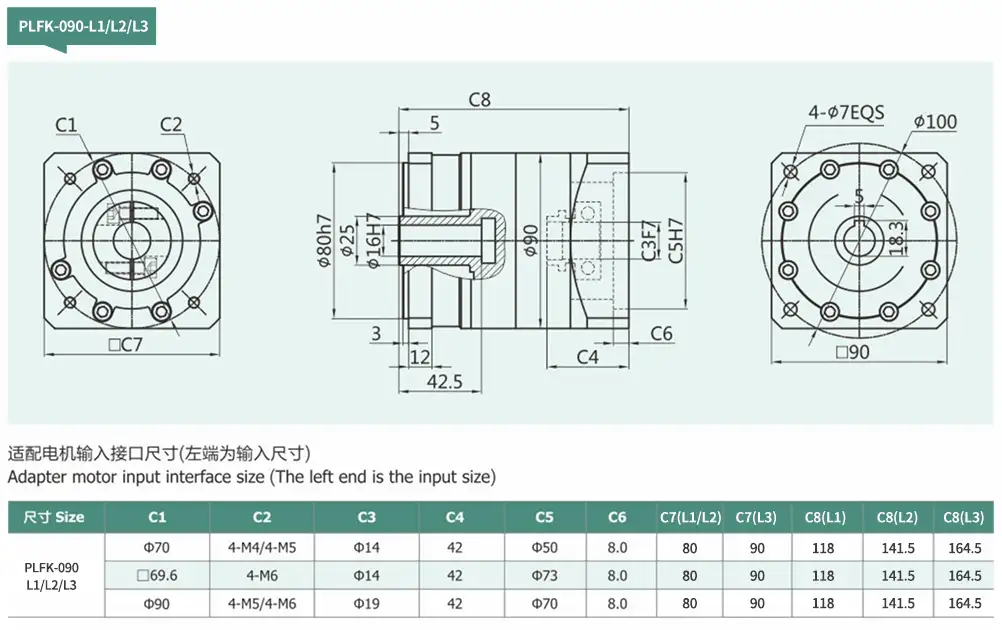

DIMENSIONS
