PLS Series Reducer

$

The PLS Series Reducer is engineered to provide durable, reliable performance and 99.93% efficiency for various industrial applications. This reducer is designed for long-term use and provides precise control for more efficient and accurate machine operation.

Get a QuoteLeave a Message

Model Type

SPECIFICATIONS

Model Unit PLS060 PLS090 PLS120 PLS160 Ratio Stage
Rated output torque N.m 16.5 60 148 310 3 1
27 86 222 605 4
27 94.5 235 420 5
19.5 64 158 270 7(8)
8.5 39.5 93 - 10
  96 250 680 12 2
  96 250 - 15
30 96 250 680 16
30 96 250 680 20
33 105.5 264 460 25
30 96 250 680 28(32)
33 105.5 264 - 35
30 96 250 460 40
33 105.5 264 - 50
21.5 71.5 177 310 70(64)
37.5 120 310 900 64 3
37.5 120 310 900 80
37.5 120 310 900 100
41.0 132.5 329 580 125
37.5 120 310 - 140
41.0 132.5 329 580 175(160)
37.5 120 310 580 200
41.0 132.5 329 900 250(256)
37.5 120 310 580 280(320)
41.0 132.5 329 400 350(512)
Emergency stop torque N.m 2 times Rated output torque
Norminal input speed rmp 3000 3000 2000 2000
Maximum input speed rmp 6000 6000 3500 3500
Maximum radial force N 170 1020 2230 3200
Maximum axial force N 120 850 1550 3000
Efficiency % Single [97%] Double [95%]
Average lifetime h 20000
Weight kg 1.4 4.7 6.9 19 1
1.6 5.3 8.9 25 2
1.8 5.9 11.2 31 3
Moment of inertia kgcm2 0.107 0.4 1.65 4.31 3 1
0.094 0.309 1.22 5.15 4
0.092 0.291 1.15 4.93 5
0.091 0.285 1.13 4.84 7(8)
0.091 0.283 1.11 - 10
  0.4 1.65 6.31 12 2
  0.309 1.65 - 15
0.094 0.291 1.22 5.15 16
0.092 0.291 1.15 4.93 20
0.092 0.291 1.15 4.93 25
0.091 0.285 1.13 4.84 28(32)
0.091 0.285 1.13 - 35
0.091 0.2835 1.11 4.84 40
0.091 0.283 1.11 - 50
0.091 0.283 1.11 4.84 70(64)
0.092 0.291 1.15 4.93 64 3
0.092 0.291 1.15 4.93 80
0.092 0.291 1.15 4.93 100
0.092 0.291 1.15 4.84 125
0.091 0.291 1.13 - 140
0.091 0.291 1.13 4.84 175(160)
0.091 0.283 1.11 4.84 200
0.091 0.283 1.11 4.84 250(256)
0.091 0.283 1.11 4.84 280(320)
0.091 0.283 1.11 4.84 350(512)
Noise dB 60 65 68 70
Lubricating   Synthetic grease lubrication
levels of protection   IP65

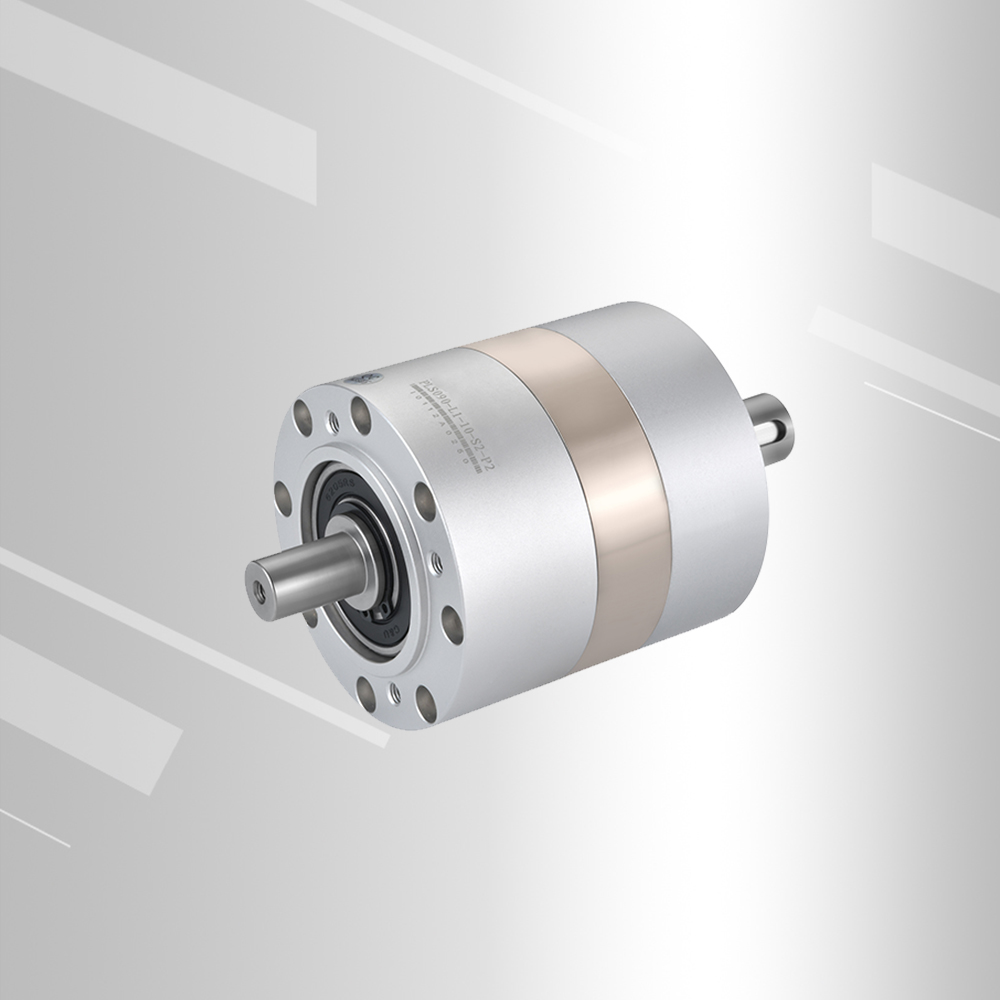

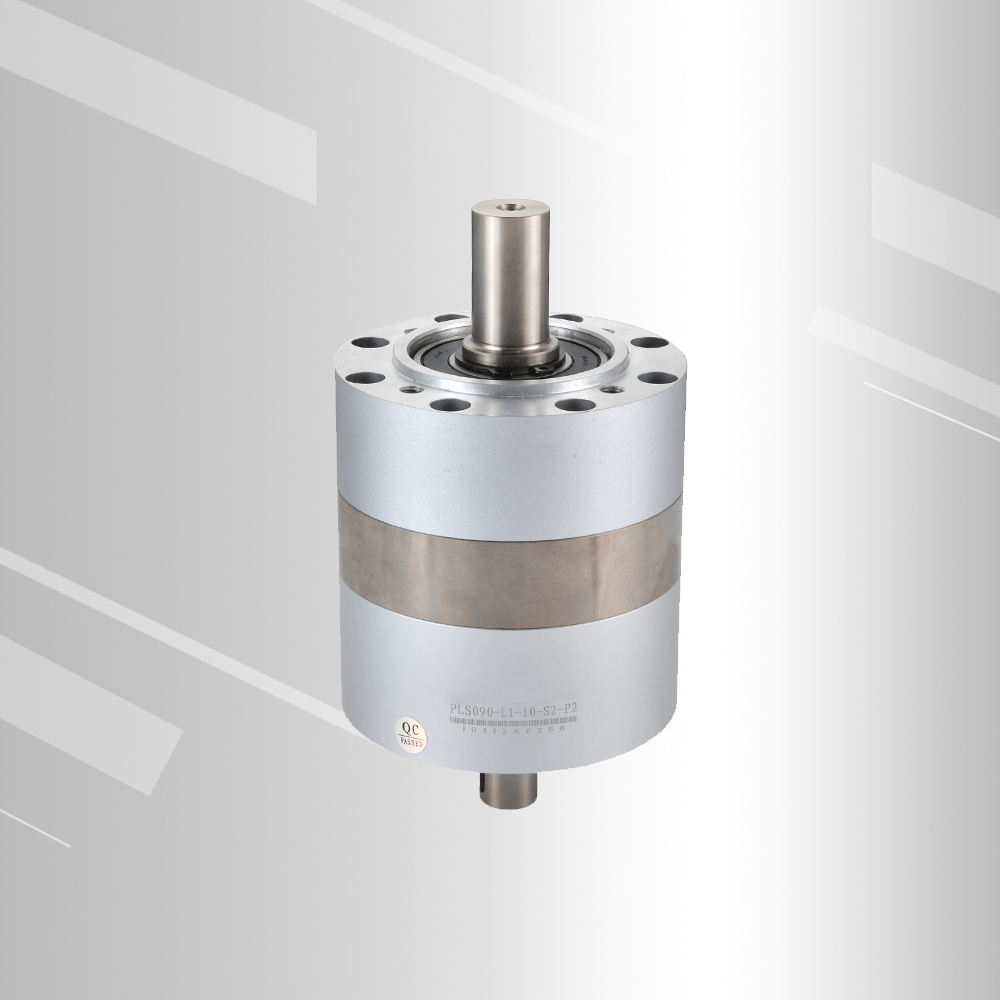

Product Display

PLS Series Reducer PLS Series Reducer PLS Series Reducer PLS Series Reducer

Product Feature

  • 1. Adopt straight tooth gear transmission, through carburizing and quenching treatment, tooth profile modification treatment, ensure smooth operation, low noise.
  • 2. Simple structure, mass production, and fast delivery time and high cost performance.
  • 3. Reducer has a complete range, which can meet the needs of most reducer in the market.

Videos

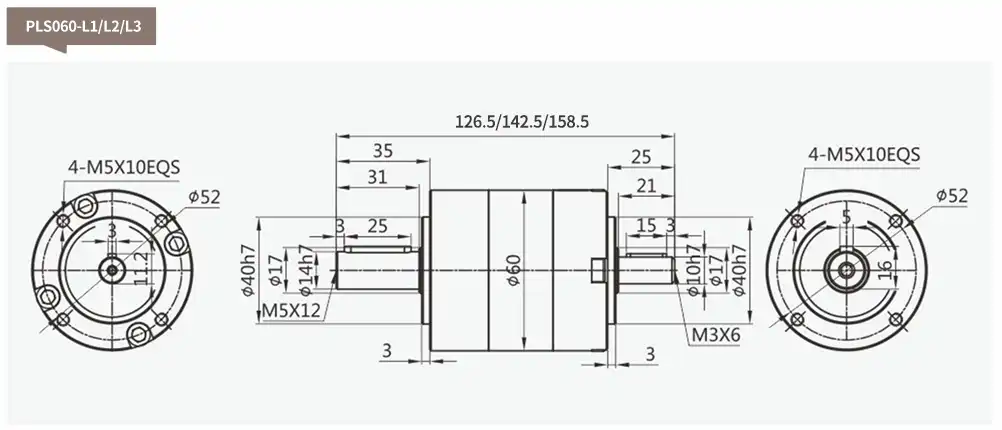

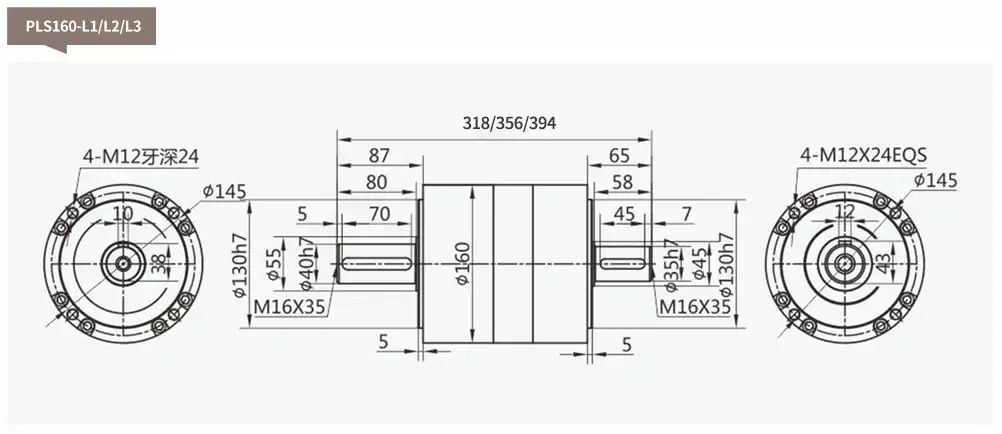

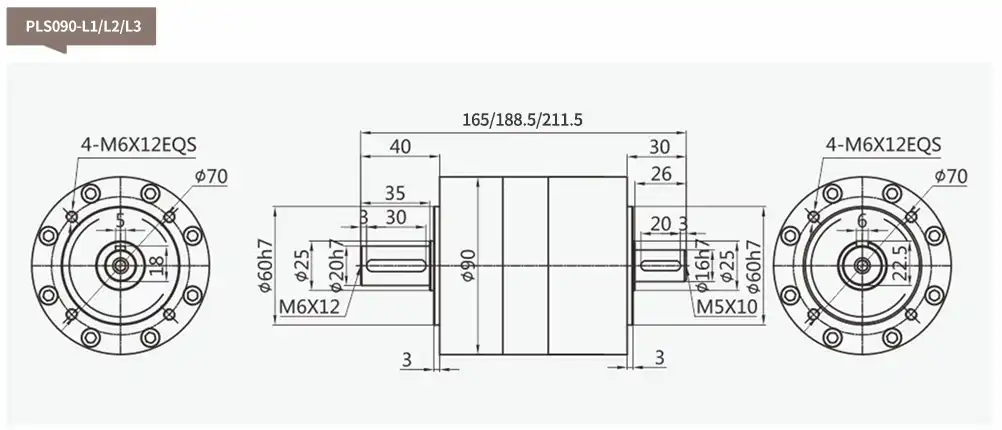

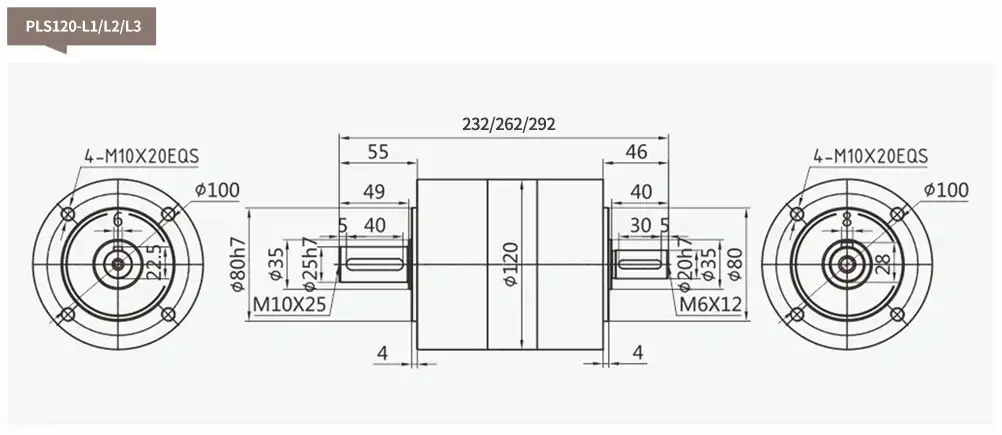

DIMENSIONS
