$75.00 - $89.00
| Model | Voltage | Power | No-Load Current | No-Load Speed | Rated Current | Rated Speed | Rated Torque |
| Z42BLDPN2425-40S | 24V | 25W | 0.5 | 4000rpm | 1.6A | 3000rpm | 0.08N.m |
| Z42BLDPN2430-50S | 24V | 30W | 0.7 | 4300rpm | 2A | 3000rpm | 0.096N.m |
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 14 | 19 | 25 | 28 |
| Output shaft speed r/min | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 |
| Allowable torque N.m | 0.26 | 0.38 | 0.47 | 0.62 | 0.87 | 1.2 | 1.6 | 1.8 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Ratio | 34 | 45 | 58 | 67 | 81 | 91 | 103 | 119 |
| Output shaft speed r/min | 89 | 67 | 52 | 45 | 37 | 33 | 29 | 25 |
| Allowable torque N.m | 2.2 | 2.9 | 3.8 | 3.9 | 4.7 | 5.3 | 6 | 6.9 |
| Reduction stage | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 |

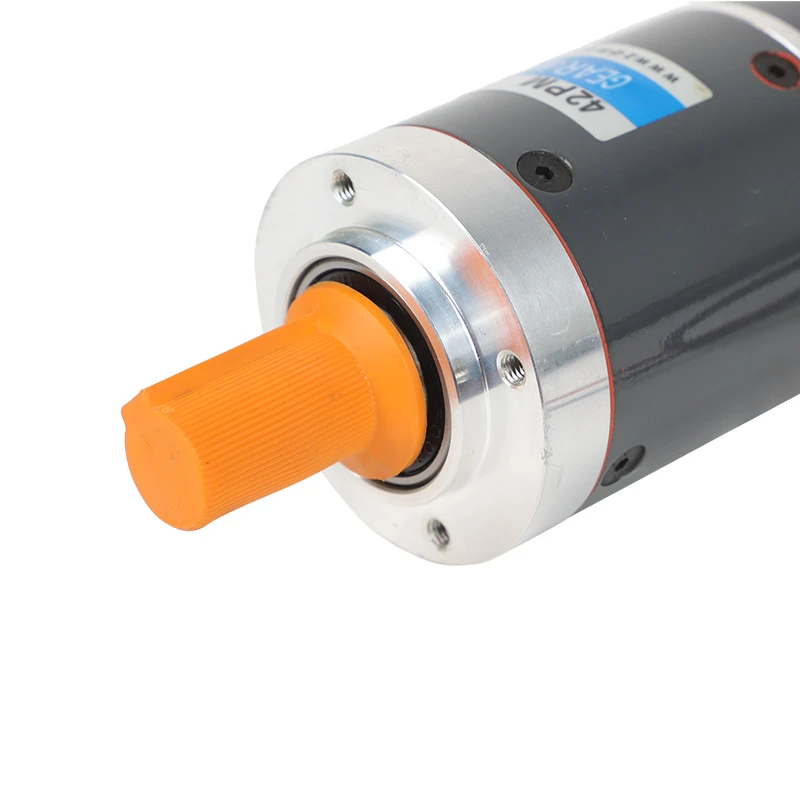

1. Double support structure: Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot
2. Spindle connection: Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life
3. Inner hole: Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead
4. Helical tooth:We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible

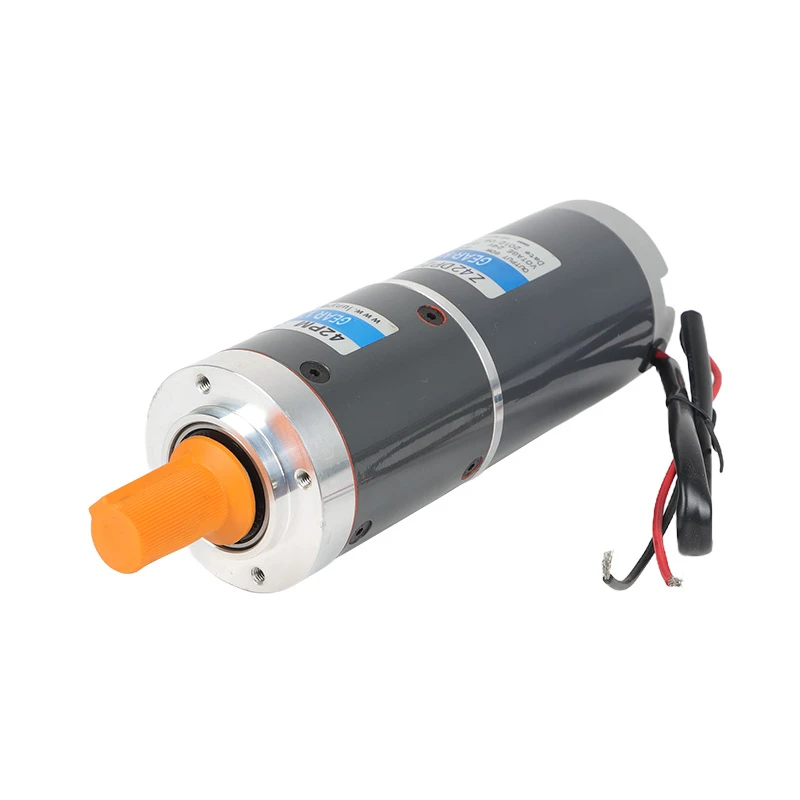

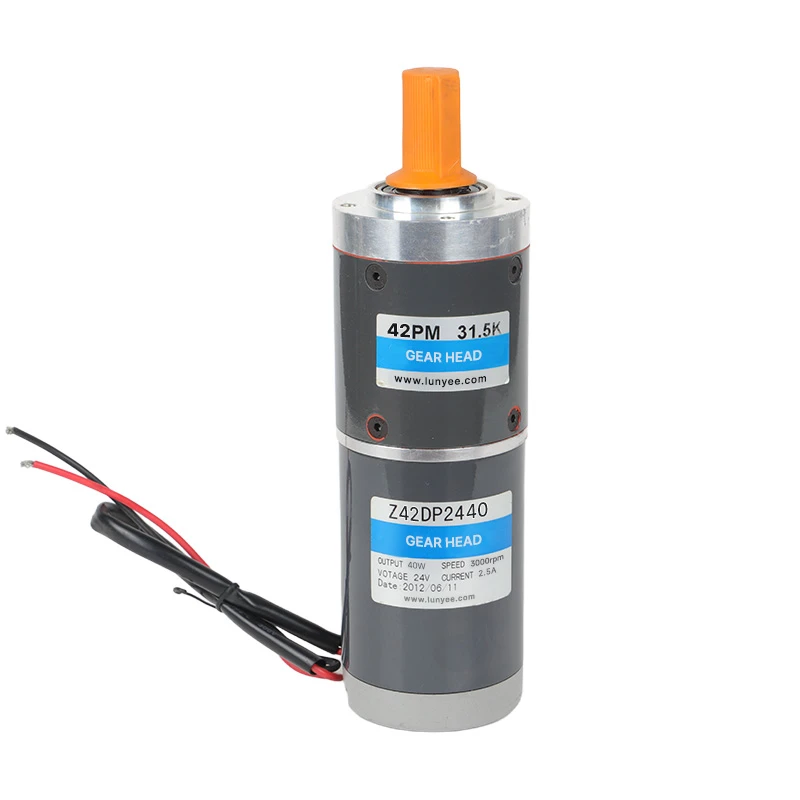

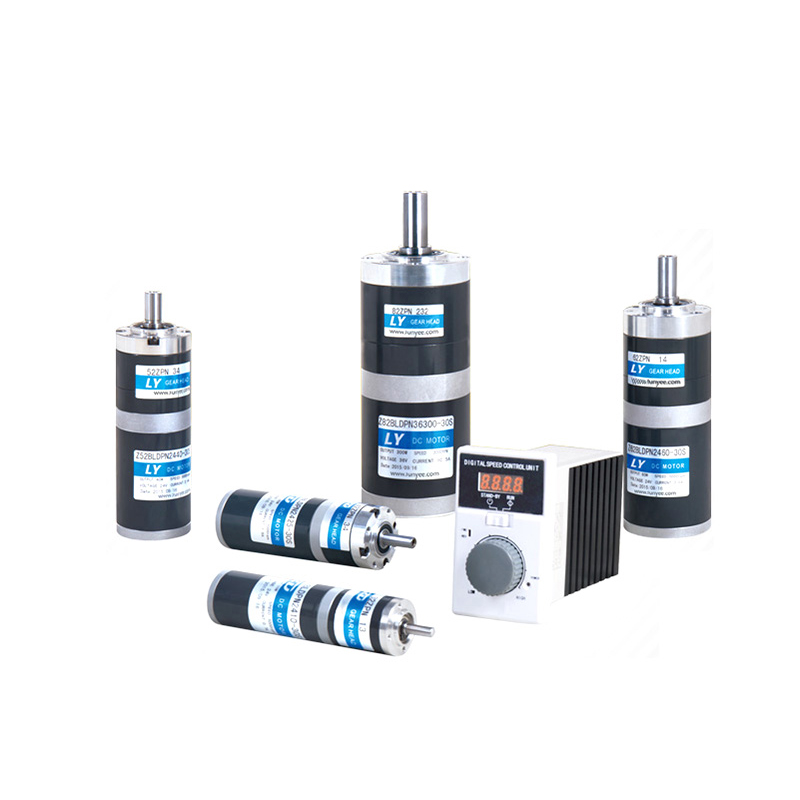

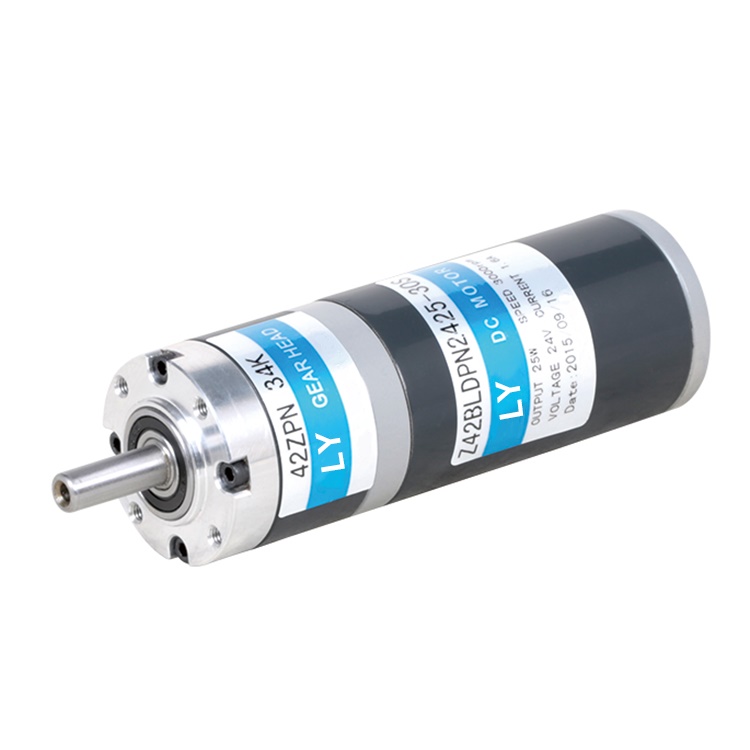

The robust 42mm Brushless DC Planetary Geared Motor ensures a long lifespan and low noise operation. It offers a durable build which is perfect for automated instruments and robots.
This motor boasts a substantial torque output of up to 10Nm, making it suitable for applications that require powerful and consistent torque.
Featuring an output power of 25/30W and a voltage of 24V, this motor provides reliable and efficient performance.
Even under loaded conditions, this motor can reach a speed of 3000 RPM, a notable feat that ensures fast and precise performance, thus improving operational efficiency.
The motor's ability to provide consistent and robust torque and high-speed performance makes it a popular choice for industrial automation systems, including assembly lines, packaging machines, and fabrication units.
Given its high torque output and low-noise operation, this motor serves as a core component in various robotic devices, facilitating precise control and longer operational life.
Because of its reliable power and operation efficiency, this motor is widely used in the functioning of several automated instruments in medical, research and technological fields.
A Manufacturer’s Certificate of Origin, also known as a Manufacturer’s Statement of Origin, is a specified document certifying the country.
