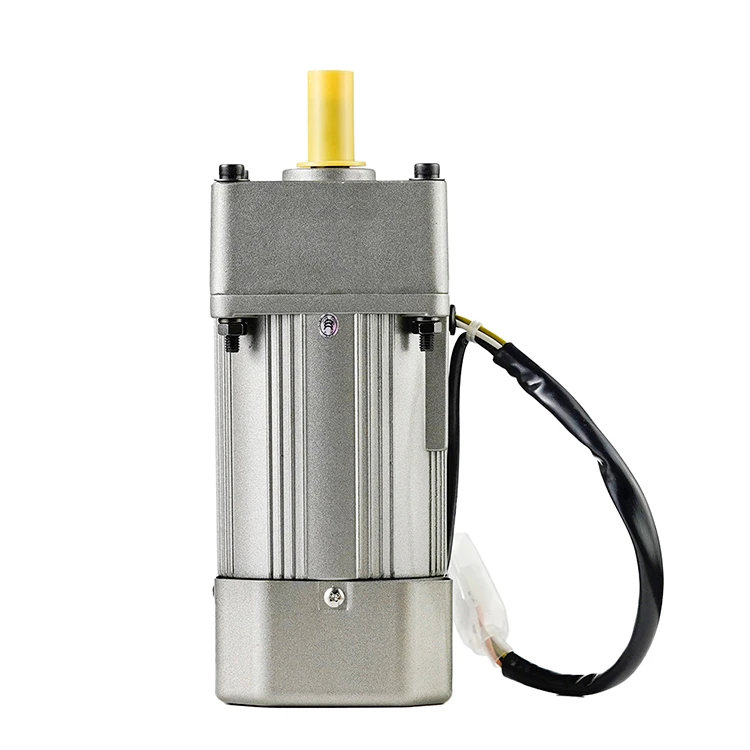

120MM 750W Micro AC Gear Motor
$520-$545
The 120MM 750W Micro AC Gear Motor has reliable starting and directional stability, high protection design, and can maintain stable performance at rated frequency. It is suitable for machines that require high reliability, directional stability, and perfect protection design, such as industrial conveying equipment, automation machinery, etc.
SPECIFICATIONS
| Motor Model | Power | Voltage | Frequency | Current | Stating Torque | Rated Torque | Rated Speed | Rated Time | Capacitor | ||
| motor with round shaft | motor with gear shaft | W | V | Hz | A | mN.M | mN.M | r/min | min | uF/VAC | |
| Induction motor | 7IK750A-AF | 7IK750GN-AF | 750 | 1PH110 | 50 | 9.3 | 6395 | 5116 | 1400 | continuous | 80/250 |
| 1 Phase | 60 | 9.3 | 5328 | 4263 | 1680 | ||||||
| 7IK750A-CF | 7IK750GN-CF | 750 | 1PH220 | 50 | 6.1 | 6395 | 5116 | 1400 | continuous | 25/450 | |
| 1 Phase | 60 | 6.1 | 5328 | 4263 | 1680 | ||||||
| 7IK750A-SF | 7IK750GN-SF | 750 | 3PH220 | 50 | 4.4 | 6395 | 5116 | 1400 | continuous | ||
| 3 Phase | 60 | 3.75 | 5328 | 4263 | 1680 | ||||||
| 7IK750A-UF | 7IK750GN-UF | 750 | 3PH380 | 50 | 2.62 | 6395 | 5116 | 1400 | continuous | ||
| 3 Phase | 60 | 2.25 | 5328 | 4263 | 1680 | ||||||
| Reversible motor | 7RK750A-AF | 7RK750GN-AF | 750 | 1PH110 | 50 | 8.4 | 6395 | 5116 | 1400 | 30 | 80/250 |
| 1 Phase | 60 | 8.4 | 5328 | 4263 | 1680 | ||||||
| 7RK750A-CF | 7RK750GN-CF | 750 | 1PH220 | 50 | 4.85 | 6395 | 5116 | 1400 | 30 | 25/450 | |
| 1 Phase | 60 | 4.85 | 5328 | 4263 | 1680 | ||||||
| Brake motor | 7IK750A-AFM | 7IK750GN-AFM | 750 | 1PH110 | 50 | 9.3 | 6395 | 5116 | 1400 | 30 | 80/250 |
| 1 Phase | 60 | 9.3 | 5328 | 4263 | 1680 | ||||||
| 7IK750A-CFM | 7IK750GN-CFM | 750 | 1PH220 | 50 | 6.1 | 6395 | 5116 | 1400 | 30 | 25/450 | |
| 1 Phase | 60 | 6.1 | 5328 | 4263 | 1680 | ||||||
| 7IK750A-SFM | 7IK750GN-SFM | 750 | 3PH220 | 50 | 4.4 | 6395 | 5116 | 1400 | continuous | ||
| 3 Phase | 60 | 3.75 | 5328 | 4263 | 1680 | ||||||
| 7IK750A-UFM | 7IK750GN-UFM | 750 | 3PH380 | 50 | 2.62 | 6395 | 5116 | 1400 | continuous | ||
| 3 Phase | 60 | 2.25 | 5328 | 4263 | 1680 | ||||||
| Motor Model | Power | Voltage | Frequency | Speed Control Range | Stating Torque | Rated Torque | Rated Time | Capacitor | |||
  Variable motor |
motor with roundshaft | motor with gear shaft | W | V | Hz | A | mN.M | 90r/min mN.M | 1400r/min mN.M | min | uF/VAC |
| 7IK750RA-AF | 7IK750RGN-AF | 750 | 1PH110 | 50 | 90-1400 | 6395 | 2046 | 5116 | continuous | 80/250 | |
| 1 Phase | 60 | 90-1680 | 5328 | 2046 | 5116 | ||||||
| 7IK750RA-CF | 7IK750RGN-CF | 750 | 1PH220 | 50 | 90-1400 | 6395 | 2046 | 5116 | continuous | 25/450 | |
| 1 Phase | 60 | 90-1680 | 5328 | 2046 | 5116 | ||||||
| reduction ratio | KW | 2 | 2.5 | 3 | 3.6 | 4 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 | 600 | 750 | |
| 50 Hz |
r/min | 750 | 700 | 560 | 467 | 389 | 350 | 280 | 233 | 187 | 156 | 140 | 112 | 93 | 78 | 70 | 56 | 47 | 38.8 | 35 | 28 | 23.3 | 18.7 | 15.5 | 14 | 11.7 | 9.3 | 7.8 | 7 | 5.6 | 4.7 | 3.5 | 2.8 | 2.3 | |
| N.M | 9.13 | 11.4 | 13.7 | 16.4 | 18.3 | 22.8 | 27.4 | 34.2 | 41 | 45.6 | 57 | 68.4 | 82.1 | 91.3 | 114 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |||
| 60 Hz |
r/min | 750 | 840 | 672 | 560 | 467 | 420 | 336 | 280 | 224 | 187 | 168 | 134 | 112 | 93.3 | 84 | 67.2 | 56 | 46.7 | 42 | 33.6 | 28 | 22.4 | 18.7 | 16.8 | 14 | 11.2 | 9.33 | 8.4 | 6.72 | 5.6 | 4.2 | 3.36 | 2.8 | |
| N.M | 7.3 | 9.17 | 11 | 13.2 | 14.7 | 18.3 | 22 | 27.5 | 33 | 36.7 | 45.3 | 55 | 66 | 73.3 | 80 | 110 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |||
Product Display
120MM 750W
Micro AC Gear Motor
- Extremely high torque output
- Easy bidirectional operation
- Multiple speed ranges
- Energy-saving design
Support
Customization
Factory
Direct Sales
Product Feature
Extremely high torque output
The motor has high torque output and provides excellent power for demanding applications. It can work well under extreme conditions and is ideal for tasks that require a large amount of torque output.
Multiple speed ranges
Precise control can be easily achieved, and the speed can be adjusted according to the operating requirements, achieving unparalleled performance and versatility in various situations.
Easy bidirectional operation
The reversible gear function goes beyond traditional designs and is ideal for machinery that needs to change the direction of rotation, such as cranes and conveyor systems. This feature provides additional convenience and adaptability when bidirectional operation is critical.
Energy-saving design
Designed for maximum energy efficiency, it can reduce operating costs for continuous industrial use. In addition to being economical, it also promotes sustainable development by optimizing resource utilization.
Product Applications
Industrial Automation
CNC lathe machine, Industrial Robot, Printing Equipment
Medical Devices
CMedical X-ray Machines, Medical Infusion Pumps, Medical Centrifuges
Laboratory Equipment
Fume Hood, Crushing Grinder, Rotary Evaporator
Consumer Electronics
Refrigerators, Washing Machines, Electric Fans
Office Automation
Printers, Scanners, Fax Machines
Small Scale Renewable Energy Projects
Small Wind Turbines, Micro Hydro Generators, Solar Air Conditioning Systems
