SPECIFICATIONS
| Rated power (kW) | 2 |
| Rated torque (N-m) | 9.55 |
| Maximum torque (N-m) | 28.65 |
| Rated speed (rpm) | 2000 |
| Maximum speed (rpm) | 3000 |
| Rated current (Arms) | 10.59 |
| Instantaneous maximum current (Arms) | 34.2 |
| Rated power change rate (kW/s) | 62.25 |
| Rated power change rate (kW/s) with brake | 61.62 |
| Rotor inertia (x10kg.m) | 14.65 |
| Rotor inertia (x10kg-m) with brake | 14.8 |

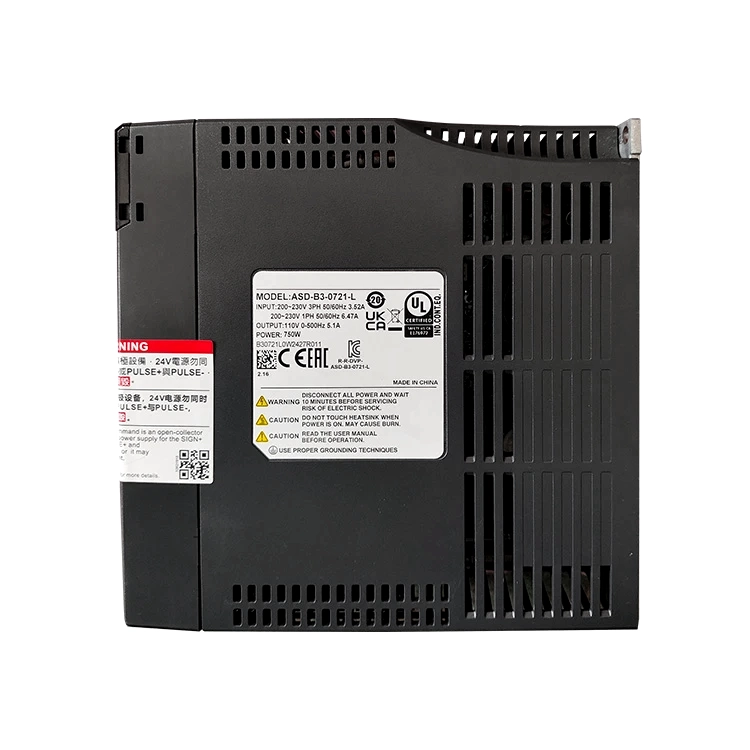

| ASD-B3 | 100w | 200w | 400w | 750w | 1kw | 1.5kw | 2kw | 3kw |
| 01 | 02 | 04 | 07 | 10 | 15 | 20 | 30 | |
| Input current (3 PH) (Unit: Arms) | 0.88 | 1.29 | 2.04 | 3.52 | 5.72 | 6.33 | 7.6 | 10.3 |
| Input current (1 PH) (Unit: Arms) | 1.47 | 2.35 | 3.74 | 6.47 | 10.4 | 11.7 | - | - |
| Continuous output current (unit: Arms) | 0.9 | 1.55 | 2.65 | 5.1 | 7.3 | 8.3 | 13.4 | 19.4 |
| Drive Resolution | 24-bit (16777216 p/re V) | |||||||
| Main circuit control method | S VP WM Control | |||||||
| Pulse Command Mode (Pulse Control Mode Only) | Pulse + Sign; Phase A + Phase B; CCW Pulse + CW Pulse | |||||||
| Communication Interface Support | RS-485 / USB / CANopen / DMCNET / EtherCAT / PROFINET | |||||||
| Ambient Temperature | 0˚C ~ 55˚C (If the ambient temperature exceeds 45°C, forced air circulation is required) | |||||||
Product Display
AC servo motors are electric motors that convert AC power into mechanical energy and are widely used in industrial automation, robotics and precision control systems. Compared with traditional DC servo motors, AC servo motors offer higher efficiency and lower maintenance costs. Their operating principle is based on electromagnetic induction, and precise control of motor speed and torque is achieved by controlling the frequency and amplitude of the current.
AC servo motors usually consist of three parts: stator, rotor and controller. The stator is the stationary part with built-in windings that generate a rotating magnetic field through alternating current; the rotor is the rotating part, which is usually made of permanent magnetic material or induction material. The controller is responsible for regulating the current input to the motor for precise control of speed and position. Through a feedback system, the controller is able to monitor the operating status of the motor in real time so that dynamic adjustments can be made to ensure stable operation of the system under various load conditions.
AC servo motors are used in a wide range of applications including, but not limited to, robotics, CNC machine tools, packaging equipment, printing machinery, textile machinery, and medical equipment. In the field of robotics, AC servo motors are used to drive joint movements and realize complex actions; in CNC machine tools, they are responsible for accurately controlling the position and speed of tools to improve machining efficiency and precision. In addition, with the development of intelligent manufacturing and industry 4.0, the role of AC servo motors in automated production lines is becoming more and more important.
In conclusion, AC servo motors play a vital role in modern industry with their excellent performance and wide applicability. With the continuous progress of technology, the future AC servo motor will be more intelligent and efficient, providing more powerful power support and control solutions for various industries.
Product Feature
High torque output: It can provide large torque during startup and operation, and maintain stable output even when the load changes suddenly, ensuring the normal operation and reliability of the equipment, which is commonly used in the drive of heavy machinery and industrial equipment that needs to overcome large resistance.Multiple control modes: It supports position control, speed control, torque control and hybrid control modes, which can be flexibly switched and selected by the user according to the actual application, for example, the combination of speed and position control modes is adopted in the operation of elevators to realize smooth lifting and precise stopping.
Good compatibility: It can be seamlessly connected with all kinds of common industrial control systems, such as PLC, motion controller, etc., which is convenient for integration and application in existing automated production lines, reduces the difficulty and cost of system integration, and facilitates the rapid construction and upgrading of industrial automation systems.
High efficiency and energy saving: using advanced motor design and control technology, it can effectively reduce power consumption during operation, which is in line with the development trend of green energy saving in modern industry, and long-term use can significantly reduce the enterprise's energy cost expenditure, especially in large-scale production or long-time continuous operation of the equipment, the energy-saving benefits are more prominent.
Product Applications
Automated Manufacturing
Servo motors are widely used in automation manufacturing for precise control of mechanical motion, enabling efficient and accurate production processes.
Robotics
Servo motors play a crucial role in precise control of robotic joint movements, facilitating rapid response and high-precision positioning. This ensures that robots can efficiently accomplish complex tasks.
Packaging Machinery
Liquid packaging machine, block packaging machine, vacuum packaging machine, sealing machine, automated packaging line
CNC Machines
CNC milling machine, CNC lathe, CNC plasma cutting machine, CNC laser cutting machine
Material Handling Systems
Automated conveyor systems, automated warehousing, robotic material handling, packaging and assembly lines, sorting systems
Renewable Energy Projects
Solar Tracking System、Protection and Cleaning of Solar Power Components、Pitch Control System、Generator Control System
