Home / 130MM 2000W 220V 2000RPM DS2 Servo Motor and Driver

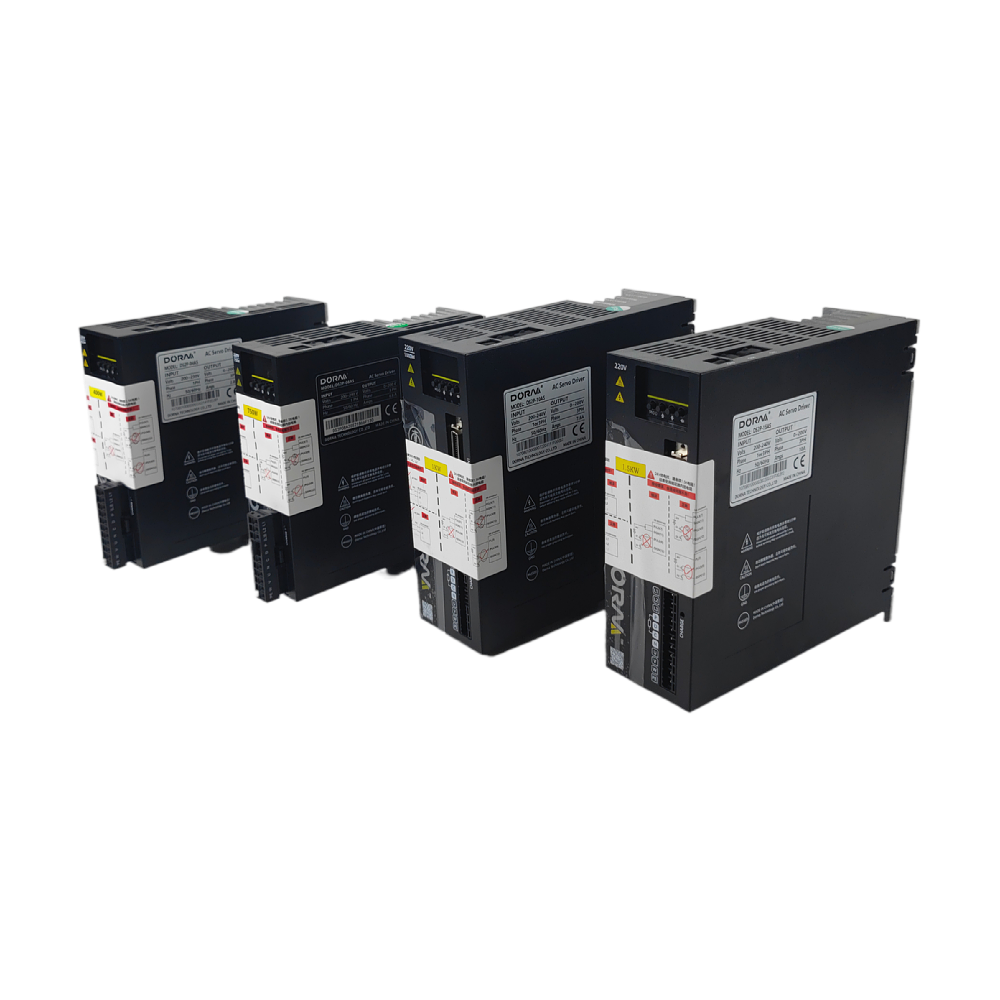

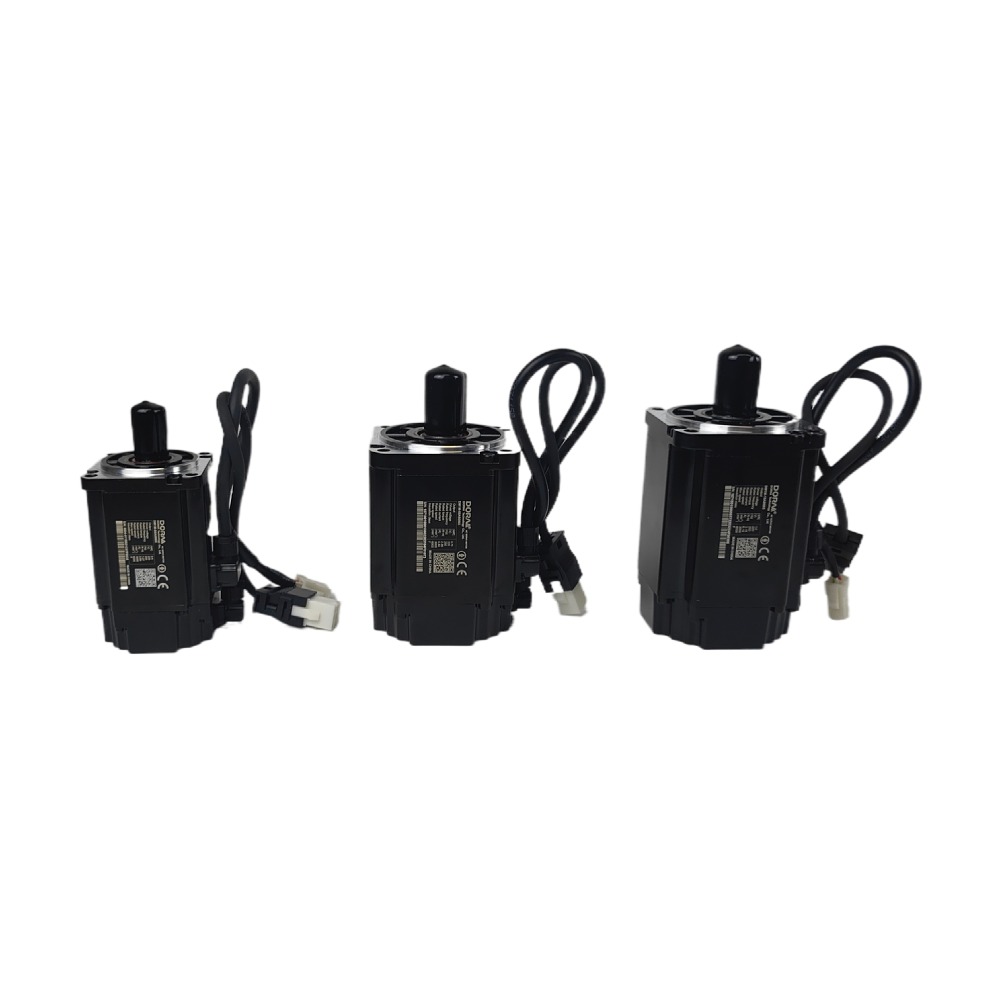

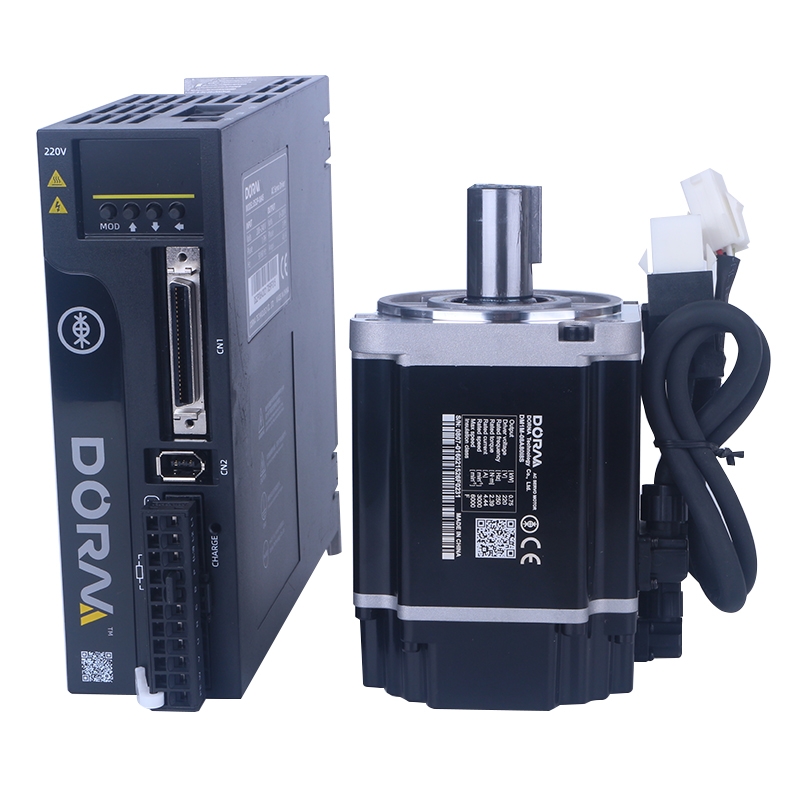

130MM 2000W 220V 2000RPM DS2 Servo Motor and Driver

$280-$310

This powerful 130mm DS2 Servo Motor and Driver from 2000W helps achieve precise and accurate motion control, making it an ideal choice for industrial automation. It offers great performance and reliability, thanks to its high torque to inertia ratio and automatic positioning features.

Get a QuoteLeave a Message

Model TypeServo Motor

Voltage(V)220

Output(W)2000

Size(mm)130

Speed(RPM)2000

SPECIFICATIONS

Rated power [kW] 2
Rated voltage [V] 220
Rated torque [Nm] 9.55
Maximum torque [Nm] 28.65
Rated current [A] 9.44
Maximum current [A] 28.32
Rated speed [rpm] 2000
Maximum speed [rpm] 3000
Rotor inertia [10-⁴kg.m²] 14.58
Brake rated power [W] 23
Brake rated voltage [V] 24
Brake holding torque [Nm] 9.55

Voltage (V) Power Driver Model Flange(mm) Motor Model Rated Speed (rpm) Rated torque(N*m)
220V 100W DS2P-01AS 40 DM1M-01A40I8S 3000 0.32
200W DS2P-02AS 60 DM1M-02A60I8S 3000 0.64
400W DS2P-04AS 60 DM1M-04A60I8S 3000 1.27
750W DS2P-08AS 80 DM1M-08A80I8S 3000 2.39
1KW DS2P-10AS 80 DM1M-10A80I8S 3000 3.18
1KW DS2P—10AS 130 DMIS-10A13018S 2000 4.77
1.5KW DS2P—15AS 130 DMIS-15A13018s 2000 7.16
2KW DS2P—20AS 130 DMIS-20A13018S 2000 9.55

Product Display

1500W 130mm Servo Motor and Driver 1500W 130mm Servo Motor and Driver 1500W 130mm Servo Motor and Driver

Product Feature

High Power Output

Delivers an impressive 2000W of power, suitable for demanding industrial applications.

High Torque

Provides high torque to handle heavy loads and ensure smooth operation.

Advanced Control

Equipped with advanced servo control technology for precise movement and positioning.

Energy Efficient

Designed for optimal energy efficiency, reducing operational costs.

Robust Construction

Durable and robust design built to withstand harsh industrial environments.

Product Applications

Heavy Machinery

Ideal for driving heavy machinery, including industrial presses and large conveyors.

Automotive Manufacturing

Enhances performance and precision in automotive manufacturing processes.

Robotics

Powers large-scale robotic systems requiring high power and torque.

Aerospace

Provides reliable control for aerospace applications, including simulators and test rigs.

Energy Sector

Used in wind turbines, solar tracking systems, and other renewable energy applications.

1500W 130mm Servo Motor and Driver

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
130mm-2000w-220v-2000rpm-ds2-servo-motor-and-drive-dimensions-3.STEP5017KBDownload
130mm-2000w-220v-2000rpm-ds2-servo-motor-and-drive-dimensions-4.STEP4538KBDownload
Servo-Motor-Catalog.pdf26.1MBDownload
