SPECIFICATIONS
| Rated power [kW] | 1.5 |
| Rated voltage [V] | 220 |
| Rated torque [Nm] | 7.16 |
| Maximum torque [Nm] | 21.5 |
| Rated current [A] | 8.13 |
| Maximum current [A] | 24.5 |
| Rated speed [rpm] | 2000 |
| Maximum speed [rpm] | 3000 |
| Rotor inertia [10-⁴kg.m²] | 9.6 |
| Brake rated power [W] | 23 |
| Brake rated voltage [V] | 24 |
| Brake holding torque [Nm] | 7.16 |
| Voltage (V) | Power | Driver Model | Flange(mm) | Motor Model | Rated Speed (rpm) | Rated torque(N*m) |
| 220V | 100W | DS2P-01AS | 40 | DM1M-01A40I8S | 3000 | 0.32 |
| 200W | DS2P-02AS | 60 | DM1M-02A60I8S | 3000 | 0.64 | |
| 400W | DS2P-04AS | 60 | DM1M-04A60I8S | 3000 | 1.27 | |
| 750W | DS2P-08AS | 80 | DM1M-08A80I8S | 3000 | 2.39 | |
| 1KW | DS2P-10AS | 80 | DM1M-10A80I8S | 3000 | 3.18 | |
| 1KW | DS2P—10AS | 130 | DMIS-10A13018S | 2000 | 4.77 | |
| 1.5KW | DS2P—15AS | 130 | DMIS-15A13018s | 2000 | 7.16 | |
| 2KW | DS2P—20AS | 130 | DMIS-20A13018S | 2000 | 9.55 |

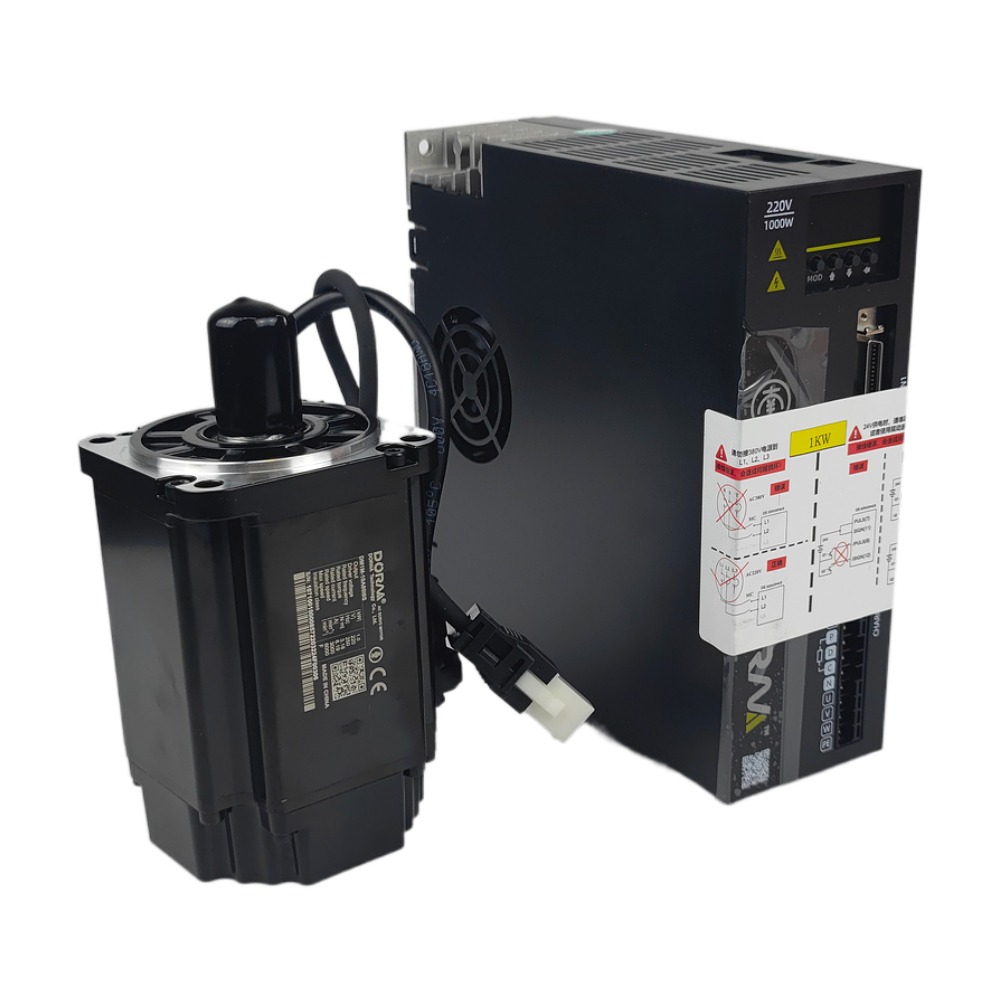

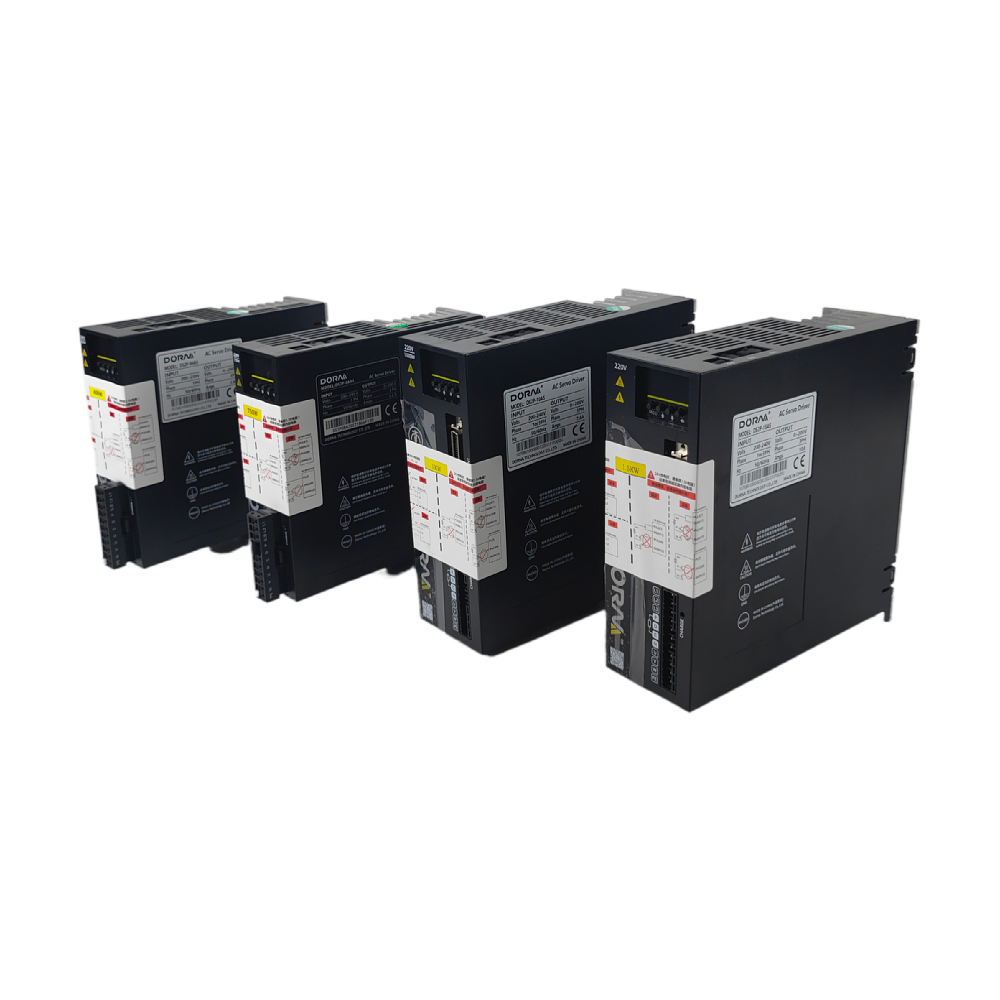

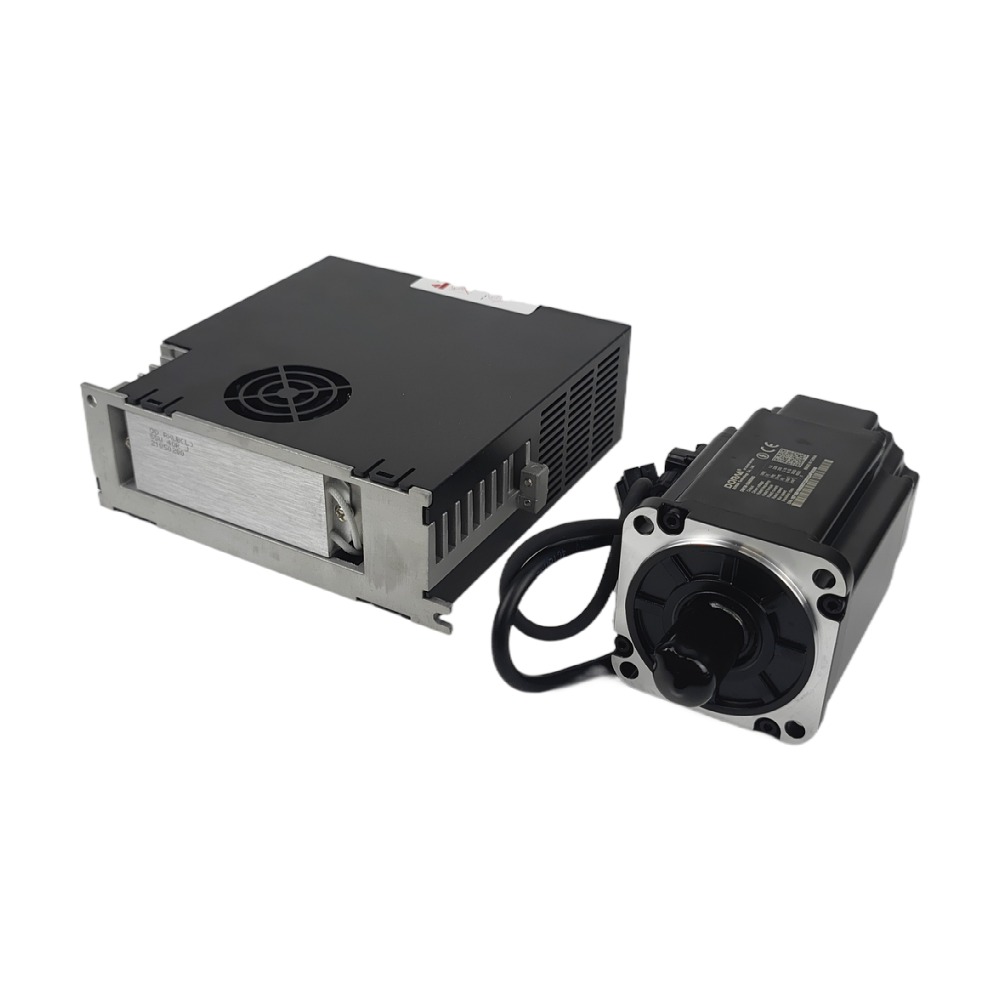

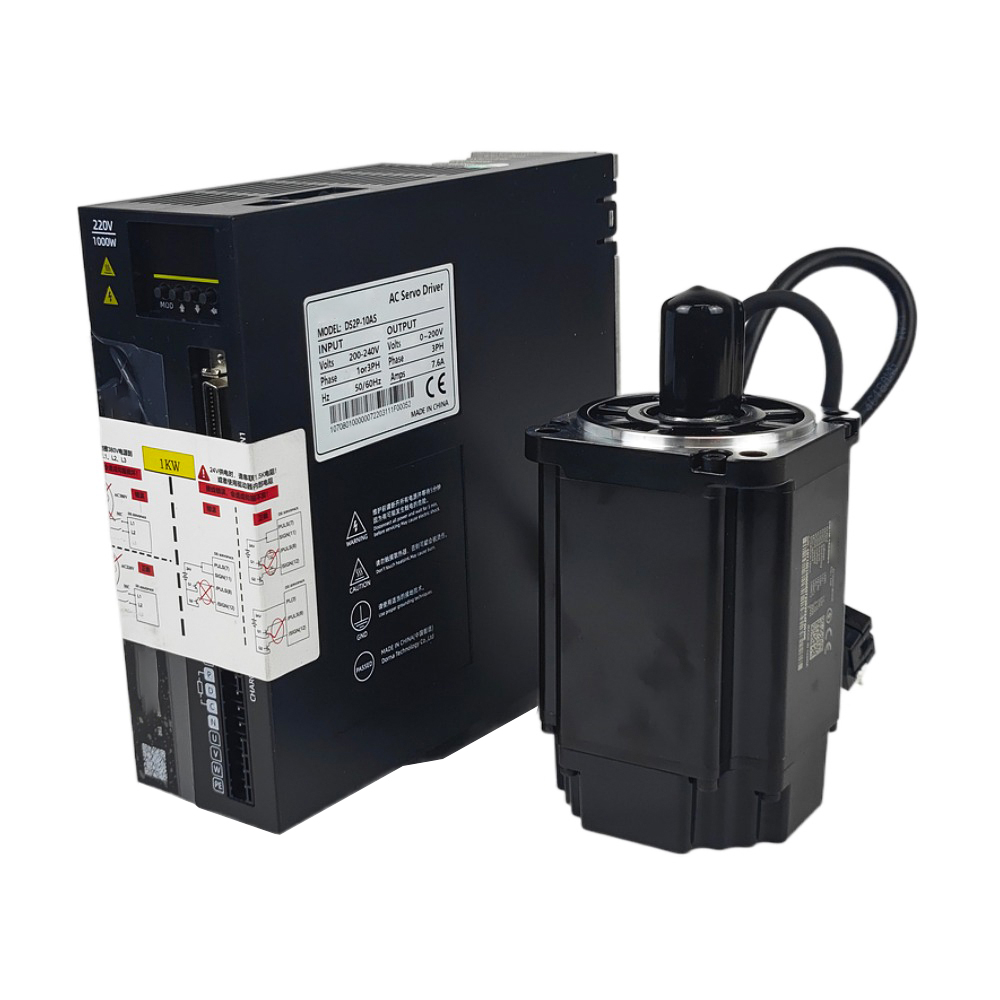

Product Display
Product Feature
- 1. High Performance---Max Speed 6000rpm, Max Speed 6000rpm;
- 2. 23-Bit Encoder----23-Bit absolute optical encoder, 8 millon ppr resolution up to 0.15arc/sec;
- 3. IP67---Up to IP67 Protection class;
- 4. High Vibration Resistance--Magnetic encoder can work in vibrations up to 20g;
Product Applications
Related Products
Videos
DIMENSIONS
