57 Series Planetary Gear Stepper Motor
$80-$90
The 57 Series Planetary Gear Stepper Motor flange size is 57 and the step angle is 1.8°. It showcases excellent torque output and a variety of speed ratios. Boasts precision, stability, and low operational noise. Suited for machines like packaging machinery and small-scale industrial robots. Offers reliable performance for applications that require accurate positioning and controlled movement.
SPECIFICATIONS
| Motor Base |
Gearbox | Torque(Nm) | Speed(RPM) | Return Clearance (am) |
Body Length (mm) |
Weight (kg) |
Allowable Torque (Nm) |
|||
| Stage | Ratio | Static Torque |
Output Torque |
Original Speed |
Output Speed |
|||||
| 5756 | One Stage |
4 | 1.2 | 4.3 | ≤600 | 0-150 | ≤15 | 127.5 | 1.52 | ≤20 |
| 5 | 5.4 | 0-120 | ||||||||
| 7 | 7.6 | 0-86 | ||||||||
| 10 | 10.8 | 0-60 | ||||||||
| Two Stage |
16 | 16.3 | 0-38 | ≤20 | 143.5 | 1.8 | ≤30 | |||
| 20 | 20.4 | 0-30 | ||||||||
| 25 | 25.5 | 0-24 | ||||||||
| 28 | 28.6 | 0-21 | ||||||||
| 一 | 一 | 一 | ||||||||
| 5780 | One Stage |
4 | 2.1 | 7.6 | S60 | 0-150 | ≤15 | 153.5 | 1.92 | ≤20 |
| 5 | 9.5 | 0-120 | ||||||||
| 7 | 13.2 | 0-86 | ||||||||
| 10 | 18.9 | 0-60 | ||||||||
| Two Stage |
16 | 28.6 | 0-38 | ≤20 | 169.5 | 2.2 | ≤30 | |||
| 20 | 35.7 | 0-30 | ||||||||

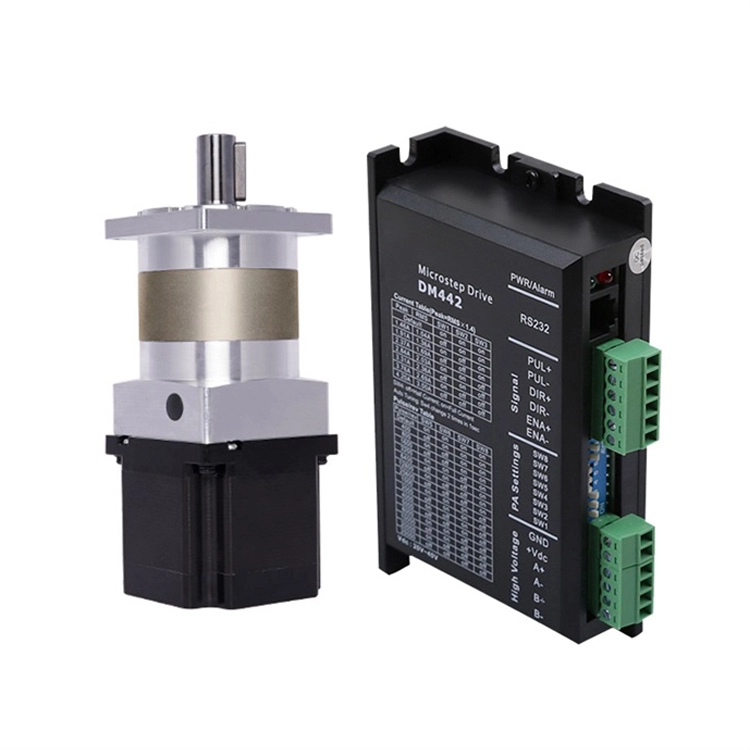

Product Display
57 Series Planetary Gear
Stepper Motor
- High Torque
- Low Current Draw
- High Precision
- Low Noise and Vibration
Support
Customization
Factory
Direct Sales
Product Feature
Complete Specifications
The size, torque and other parameters are complete, which can meet the adaptation requirements of various complex mechanical systems.
High Accurate
The step angle accuracy is extremely high, and it performs well in precision motion control, with positioning error close to zero.
Stable Perfommance
Whether it is continuous work or complex working conditions, it can maintain a stable operating state, effectively reducing maintenance costs and downtime risks.
Low Noise
The optimized structure and transmission design effectively suppress operating noise and create a quiet atmosphere for the working environment.
Strong and Wear-resistant
Using high-strength wear-resistant materials and exquisite processing technology, components such as gears and shafts are strong and durable, greatly extending the service life of the motor.
Product Applications
Medical Equipment
CT Scanners,X-Ray Machines,Ultrasound Equipment
CNC Machine
CNC Lathe Machine,Fiber Laser Cutting Machine,Vertical Machining Center
Automated Equipment
Handling Robots,Conveyor Belts,AGV Vehicles
Communications Equipment
Walkie-talkie,Wireless Headset,Car Satellite
New Energy
Solar Water Heater,Automatic Charging Pile,Vehicle System
Industrial Machinery
3D Printers,Textile Machinery,Robots
