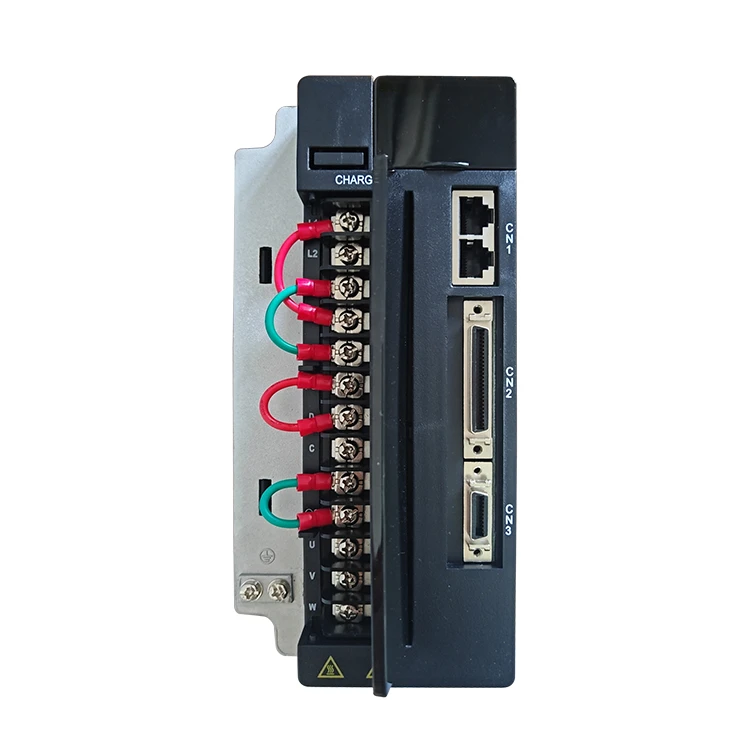

80MM 750W 220V 3000RPM B1 Servo Motor And Drive
$301-$347
Enjoy high-owing efficiency with the 750W 80mm 3000rpm B1 Servo Motor and Servo Driver. It offers up to 75% higher speed torque compared to standard motor, ensuring fast and accurate control. This servo motor is an excellent choice for all your industrial automation needs.
SPECIFICATIONS
| Input Voltage | 220V/3phase |
| Rated Output Power | 750W |
| Rated Speed | 3000rpm |
| Maximum Speed | 5000rpm |
| Rated Torque | 2. 39N. m |
| Maximum Torque | 7.16N.m |
| Rated Current | 3.7Arms |
| Maximum Current | 11.1Arms |
| Back EMF Coefficient ±10% | 43Vrms/Krpm |
| Inertia | 1.5x10‾⁴kg.㎡ |
| Line Resistance ±10% at 20℃ | 1.5Ω |
| Line Inductance ±30% | 7.9mH |
| Insulation Class | B |
| Protection Class | IP65 |
| Weight | 2.93kg |
| Voltage | Power | Driver Model | Flange (mm) | Motor Model | Rated Speed (rpm) | Rated torque (N*m) |
| 220V | 100W | EPS-B1 -0D10AA-A000 | 40 | 40DNMA2-0D10DKAK | 3000rpm | 0.32 |
| 220V | 200W | EPS-B1 -0D20AA-A000 | 60 | 60DNMA2-0D20DKAK | 3000 | 0. 64 |
| 220V | 400W | EPS-B1 -0D40AA-A000 | 60 | 60DNMA2-0D4ODKAK | 3000 | 1.27 |
| 220V | 750W | EPS-B1-0D75AA-A000 | 80 | 80DNMA2--0D75CKAK | 2000 | 3.58 |
| 220V | 750W | EPS-B1-0D75AA-A000 | 80 | 80DNMA2-0D075DKAK | 3000 | 2,39 |
| 220V | 750W | EPS-B1-0D75AA-A000 | 90 | 90DNMA1-0D75DKAM | 3000 | 2.39 |
| 220V | 750W | EPS-B1-0D75AA-A000 | 90 | 90DNMA1-0D75CKAM | 2000 | 3.58 |
| 220V | 1KW | EPS-B1 -0001AA-A000 | 80 | 80DNMA2--0001DKAK | 3000 | 3.18 |
| 220V | 1KW | EPS-B1 -0001AA-A000 | 90 | 90DNMA2-0001DKAK | 3000 | 3.18 |
| 220V | 1KW | EPS-B1 -0001AA-A000 | 130 | 130DNMA2-0001AKAM | 1000 | 9.55 |
| 220V | 1KW | EPS-B1 -0001AA-A000 | 130 | 130DNMA1-0001BKAM | 1500 | 6.37 |
| 220V | 1KW | EPS-B1 -0001AA-A000 | 130 | 130DNMA2-0001CKAM | 2000 | 4.77 |
| 220V | 1KW | EPS-B1 -0001AA-A000 | 130 | 130DNMA2-0001DKAM | 3000 | 3.18 |
| 220V | 1. 2KW | EPS-B1 -01D2AA-A000 | 130 | 130DNMA2-01D2CKAM | 2000 | 5.73 |
| 220V | 1.5KW | EPS-B1 -01D5AA-M000 | 130 | 130DNMA2-01D5AKAM | 1000 | 14.33 |
| 220V | 1.5KW | EPS-B1 -01D5AA-M000 | 130 | 130DNMA2-01D5BKAM | 1500 | 9.55 |
| 220V | 1.5KW | EPS-B1-0105A-A000-G | 130 | 130DNMA2-01D5CKAM | 2000 | 7.16 |
| 220V | 1.5KW | EPS-B1-0105A-A000-G | 130 | 130DNMA2-01D5DKAM | 3000 | 4.77 |
| 220V | 1.8KW | EPS-B -01D8A-A000 | 130 | 130DNMA2-01D8DKAM | 3000 | 5.73 |
| 220V | 2KW | EPS-B1 -02D2AA-M000 | 130 | 130DNMA2-0002BKAM | 1500 | 12.73 |
| 220V | 2KW | EPS-B1 -02D2AA-M000 | 130 | 130DNMA2-0002CKAM | 2000 | 9.55 |
| 220V | 2.7KW | EPS-B1 -02D7AA-M000 | 180 | 180DNA-27BK1AMS | 1500 | 17.2 |
| 220V | 3KW | EPS-B1-0003AA-A000 | 130 | 130DNMA2-0003CKAM | 2000 | 14.33 |
| 220V | 3KW | EPS-B1-0003AA-A000 | 130 | 130DNMA2-0003DKAM | 3000 | 9.55 |
| 220V | 3KW | EPS-B1-0003AA-A000 | 180 | 180DNA-30AK1AMS | 1000 | 28.6 |
| 220V | 3KW | EPS-B1-0003AA-A000 | 180 | 180DNA-30BK1AMS | 1500 | 19.1 |
| 220V | 3KW | EPS-B1-0003AA-A000 | 180 | 180DNA-30CK1AMS | 2000 | 14.33 |
| 220V | 3.7KW | EPS-B1-03D7AA-A000 | 180 | 180DNA-37AK1AMS | 1000 | 35 |
| 220V | 4KW | EPS-B1-0004AA-A000 | 142 | 142DNA-40BK1AMS | 1500 | 25.5 |
| 220V | 4KW | EPS-B1-0004AA-A000 | 180 | 180DNA-40BK1AMS | 1500 | 25.5 |
| 220V | 4KW | EPS-B1-0004AA-A000 | 180 | 180DNA-40CK1AMS | 2000 | 19 1 |
| 220V | 4.5KW | EPS-B1-04D5AA-A000 | 130 | 130DNMA2-04D5DKAM | 3000 | 14.33 |
| 220V | 4.5KW | EPS-B1-04D5AA-A000 | 180 | 180DNA-45BK1AMS | 1500 | 28.6 |
| 220V | 4.5KW | EPS-B1-04D5AA-A000 | 180 | 180DNA-45CK1AMS | 2000 | 21.5 |
| 220V | 5KW | EPS-B1-0005AA-A000 | 180 | 180DNA-50CK1AMS | 2000 | 23.8 |
| 220V | 5.5xW | EPS-B1-05D5AA-A000 | 180 | 180DNA-55BK1AMS | 1500 | 35 |
Product Display
How to choose suitable servo motor?
- 1. Confirm torque/speed/power ( Providing any two parameters is ok)
- 2. Choose the motor flange size (Commonly is 40mm, 60mm, 80mm, 90mm, 110mm, 130mm, 150mm, 180mm, 200mm)
- 3. Confirm servo motor accuracy: incremental encoders (2500 lines/5000 lines) Or absolute encoders (17-bit/20-bit/23-bit).
- 4. Select suitable motor driver.
Product Feature
High Precision
This servo motor and driver combination provides high precision control, ensuring accurate positioning and smooth operation.
High Torque
With its powerful 750W output, this servo motor delivers high torque, making it suitable for applications requiring strong mechanical force.
Compact Design
The 80mm frame size and compact design of this servo motor and driver enable easy integration into various machinery and equipment.
Wide Speed Range
Capable of reaching speeds up to 3000 RPM, this servo motor offers versatility in speed control for different applications.
Easy Installation and Setup
Designed for user convenience, the servo motor and driver come with easy-to-follow installation instructions and setup procedures.
Product Applications
CNC Machining
Utilize this servo motor and driver in CNC machines for precise control of tool movement and machining processes.
Robotics
Integrate this servo motor into robotic systems for accurate positioning and smooth motion control in various tasks.
Industrial Automation
Deploy this servo motor and driver in industrial automation applications such as conveyor systems, packaging machines, and material handling equipment.
Printing and Packaging
Use this servo motor in printing and packaging machinery to ensure consistent performance and high-speed operation.
