NEMA 14 35HS 1.8° 2-Phase Hybrid Stepper Motor
$5.5-$8
Equip your next project with this NEMA14 1.8° 2-Phase Hybrid Stepper Motor for effective and efficient control. This motor provides smooth motion through precise position accuracy and torque. Perfect for DIY robotics and other automated applications.
SPECIFICATIONS
| Model No | 35HS30-0804 | 35HS30-1504 | 35HS34-0504 | 35HS34-1204 | 35HS38-1684 | 35HS38-2004 | 35HS45-0804 | 35HS45-2004 |
| Step Angle (°) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Voltage (V) | 5.44 | 2.25 | 6.6 | 3 | 2.77 | 5.6 | 6 | 5 |
| Rated Current (A) | 0.8 | 1.5 | 0.5 | 1.2 | 1.68 | 2 | 0.8 | 2 |
| Phase Resistance (Q) | 6.8 | 1.5 | 13.2 | 2.5 | 1.65 | 2.8 | 7.5 | 2.5 |
| Phase Inductance (mH) | 8 | 1.8 | 14 | 3.5 | 2.8 | 3.8 | 12 | 2.6 |
| Holding Torque (g.cm) | 1200 | 1200 | 1500 | 1500 | 2000 | 2500 | 3000 | 4500 |
| Rotor Inertia (g.cm²) | 17 | 17 | 20 | 20 | 24 | 24 | 28 | 28 |
| Motor Length (mm) | 30 | 30 | 34 | 34 | 38 | 38 | 45 | 45 |
| Lead Wires No. | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Motor Weight (g) | 150 | 150 | 170 | 170 | 200 | 200 | 250 | 250 |
Product Display
A Nema 14 stepper motor is a stepper motor with a 1.4 x 1.4 inch (35 x 35 mm) faceplate. Nema 14 high torque stepper motors deliver great value with no quality sacrifice. These motors are engineered to provide the highest possible torque but minimize vibration and audible noise. A wide range of motor windings and stack lengths are readily available, or the motors can be customized to meet your machine requirements. The standard 4-lead motors are connected in the series configuration. We can also have the windings customized to perfectly match your voltage, current and maximum torque at operating speeds.
NEMA stepper motor sizes depend on the frame size of the stepper motor. NEMA means the standards set by “National Electrical Manufacturers Association”, which is comprised of 560 major electrical manufacturers in the United States, primarily consisting of manufacturers of equipment and devices for power generation, transmission, distribution, and power applications. The purpose of standard setting is to eliminate misunderstandings between electrical product manufacturers and users and to specify the safety of these product applications.

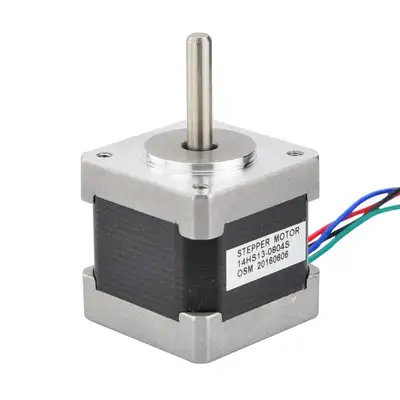

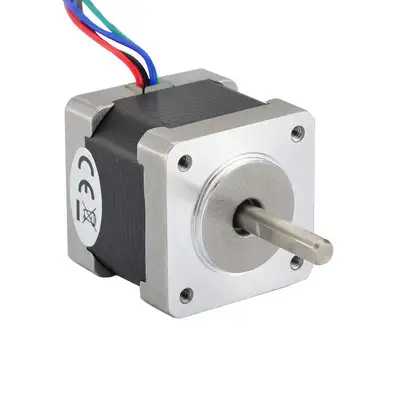

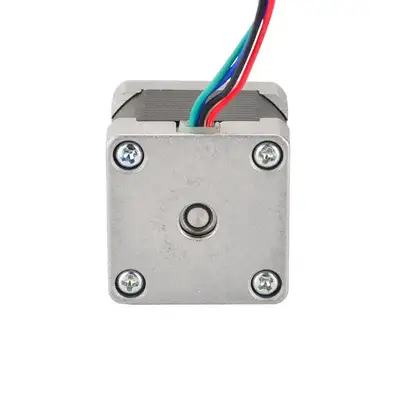

This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 4 wires, each phase draws 0.8A at 5.4V, with holding torque 18Ncm (25.5oz.in).
Electrical Specification:
- Manufacturer Part Number: 35HS
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 12-45Ncm(16.9-63.7oz.in)
- Rated Current/phase: 0.5-2A
- Phase Resistance: 1.5-13.2
- Inductance : 1.8-12mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 35 x 35mm
- Body Length: 30-45mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 16.5mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 150-250g
Product Feature
High Precision
Delivers a step angle of 1.8°, ensuring accurate and precise positioning for various applications.
Compact Design
Features a compact NEMA14 frame size, making it ideal for applications with space constraints.
High Torque Output
Provides high torque for its size, making it suitable for demanding applications that require strong and precise motion.
Durable and Reliable
Constructed with high-quality materials, ensuring long-lasting performance and reliability.
Low Noise and Vibration
Designed to operate with minimal noise and vibration, providing smooth and stable performance.
Energy Efficient
Engineered for high efficiency, reducing energy consumption and operational costs.
Easy Integration
Standard NEMA14 frame size allows for easy integration into existing systems and designs.
Product Applications
3D Printers
Ideal for use in 3D printers, providing precise control for high-quality prints.
CNC Machines
Suitable for CNC machines that require accurate and reliable motion control.
Robotics
Applicable in robotic systems, offering precise and controlled movement.
Medical Devices
Used in medical devices that demand precision and reliability in operation.
Textile Machinery
Perfect for textile machinery, ensuring precise control and high efficiency.
Automated Equipment
Ideal for various automated equipment that requires consistent and accurate motion control.
Consumer Electronics
Suitable for integration into consumer electronics that require precise and compact motion solutions.
