Motor insulation resistance testing

Motor insulation resistance testing is an essential factor for assessing the condition of electrical insulation in motors. This test helps determine the integrity of the insulation, which is crucial for the safe and efficient operation of motors. Poor insulation can lead to short circuits, motor failure, and potential hazards such as electrical fires. In this article, we will explore the principles of motor insulation resistance testing, its significance, methods, and interpretation of results, thereby ensuring the reliable operation of the motor.

Understanding Motor Insulation Resistance

Insulation resistance is a measure of the electrical resistance between the conductive parts of a motor (such as the windings) and the non-conductive parts (such as the motor frame). High insulation resistance indicates that the insulation is effective in preventing the flow of unwanted current, thereby ensuring the motor operates safely and efficiently. Conversely, low insulation resistance suggests that the insulation may be compromised, leading to potential issues such as leakage currents, overheating, and eventual motor failure.

Importance of Insulation Resistance Testing

The insulation in a motor serves as a protective barrier that prevents electrical currents from escaping their intended paths. Over time, factors such as moisture, dust, vibration, temperature fluctuations, and chemical exposure can degrade the insulation, reducing its effectiveness. Regular insulation resistance testing is critical for:

• Preventive Maintenance: Regular insulation resistance testing is a proactive measure that helps identify potential issues before they escalate into more significant problems. By conducting these tests, maintenance personnel can detect insulation deterioration, moisture ingress, or contamination, allowing for timely interventions.
• Safety Assurance: Electrical faults can lead to severe accidents, including fires and electrocutions. Insulation resistance testing helps ensure that the insulation is intact and functioning correctly, thus safeguarding personnel and equipment.
• Performance Optimization: Damaged insulation can cause motors to operate inefficiently, leading to increased energy consumption and reduced performance. By ensuring adequate insulation resistance, operators can enhance motor efficiency and performance.
• Regulatory Compliance: Many industries are governed by strict electrical safety standards that mandate regular testing of electrical equipment. Insulation resistance testing helps organizations comply with these regulations and avoid potential fines or operational shutdowns.

Methodology of Insulation Resistance Testing

Equipment Required

To perform insulation resistance testing, the following equipment is typically required:

• Insulation Resistance Tester (Megger): A specialized device designed to measure the resistance of electrical insulation. These testers apply a high voltage (typically between 250V to 5000V) to the insulation and measure the resulting current flow.
• Test Leads: High-quality test leads that can withstand the testing voltage are essential for accurate measurements.

Testing Procedure

The following steps outline the standard procedure for conducting insulation resistance testing on electric motors:

1. Preparation:
   • Ensure that the motor is disconnected from the power supply and adequately isolated.
   • Remove any external connections, including power cables and control circuits, to prevent interference during testing.
   • Inspect the motor for visible signs of damage, such as cracks or frayed insulation.
2. Setting Up the Test Equipment:

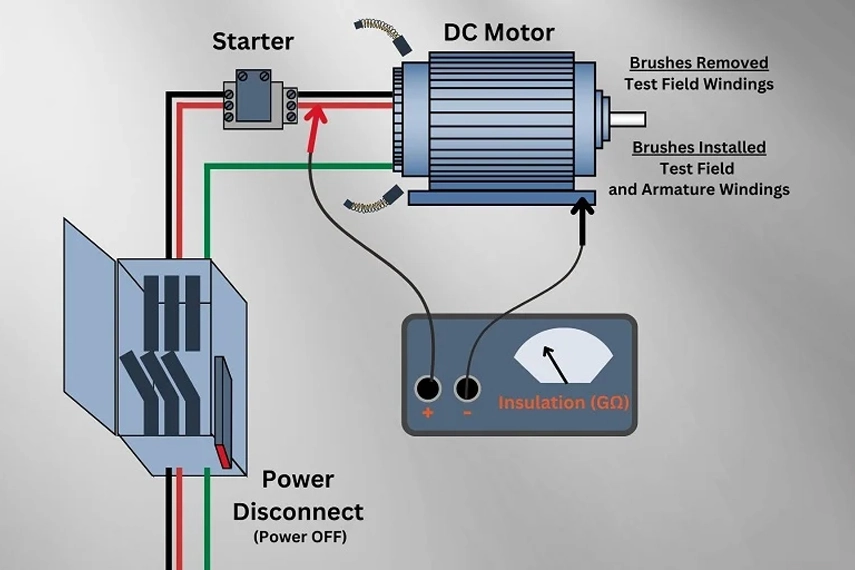

   • Connect the leads of the insulation resistance tester to the motor terminals. The positive lead should be connected to the winding, while the negative lead should be connected to the motor frame (ground).
3. Conducting the Test:
   • Set the insulation resistance tester to the desired voltage level, typically between 500V and 1000V for most motors. Higher voltages may be used for larger motors or where specified by manufacturer guidelines.
   • Initiate the test and allow the tester to apply voltage for the recommended duration, usually around 1 minute. This duration enables the insulation to stabilize and provides a more accurate reading.
4. Recording the Results:
   • After the test duration, record the insulation resistance value displayed on the tester. It is essential to note the temperature and humidity conditions during testing, as these factors can influence insulation resistance readings.
5. Analyzing the Results:
   • Compare the recorded resistance value against the manufacturer's specifications and industry standards. Generally, a minimum insulation resistance of 1 MΩ is considered acceptable for many motor applications; however, higher values are preferable.
   • A significant drop in insulation resistance compared to previous measurements may indicate insulation degradation and the need for further investigation or repair.

Test Precautions

To ensure that the insulation resistance test results are accurate and reliable, here are some considerations to help you conduct the test better:

1. Regular Testing: Regular insulation resistance testing should be part of a motor's preventive maintenance program. The frequency of testing depends on the motor's operating conditions, but annual testing is recommended for most applications. Motors operating in harsh environments or critical applications may require more frequent testing.
2. Proper Test Setup: Before conducting the test, ensure that the motor is de-energized and disconnected from its power supply. All external connections should be removed, and the motor windings should be isolated to prevent false readings. Use the appropriate test voltage based on the motor's voltage rating, and ensure that the insulation resistance tester is in good working condition.
3. Environmental Considerations: Testing should be performed in conditions as close as possible to the motor's normal operating environment. Avoid testing in extremely humid or wet conditions, as moisture can temporarily lower insulation resistance and lead to inaccurate results. If testing must be conducted in such conditions, allow the motor to dry before taking measurements.
4. Record Keeping: Accurate record-keeping is essential for tracking insulation resistance trends over time. Record the test date, motor temperature, test voltage, and resistance values for each test. This information is invaluable for identifying patterns, predicting potential failures, and making informed maintenance decisions.

Conclusion

Motor insulation resistance testing is a critical practice for ensuring the safe, efficient, and reliable operation of electric motors. By regularly assessing the condition of the motor's insulation, potential issues can be identified and addressed before they lead to motor failure or safety hazards.
