Rotor balancing methods

Rotor balancing is a critical process in the design, manufacturing, and maintenance of rotating machinery. Ensuring that a rotor is balanced minimizes vibration, reduces wear and tear on bearings and other components, and extends the overall lifespan of the machinery. This article explores various rotor balancing methods, detailing their principles, techniques, and applications to provide a comprehensive understanding of this essential aspect of mechanical engineering.

Introduction to Rotor Balancing

A rotor, which is the rotating part of a mechanical system, can be found in numerous types of equipment, including turbines, electric motors, compressors, pumps, and fans. When a rotor is not balanced, it generates unbalanced forces that cause vibrations, noise, and increased mechanical stress on the system. Over time, these issues can lead to premature failure of the machine.

Rotor balancing is the process of adjusting the mass distribution of a rotor so that its center of mass aligns with its axis of rotation. This alignment reduces or eliminates the unbalanced forces that cause vibrations. Rotor balancing can be performed during manufacturing or as part of maintenance procedures.

Types of Rotor Imbalance

Before delving into the methods of rotor balancing, it is essential to understand the types of imbalance that can occur in a rotor:

• Static Balancing: Static balancing is the simplest and most basic method of rotor balancing. It is primarily used for relatively small rotors or those that do not require high-precision balancing. The process involves:
  1. Placing the rotor on knife edges or rollers that allow free rotation
  2. Allowing the rotor to rotate freely until the heaviest point settles at the bottom
  3. Adding or removing weight at the opposite side to achieve balance

  Static balancing is effective for addressing static unbalance, where the principal axis of inertia is displaced parallel to the shaft's rotational axis. This type of unbalance is common in rotors with centrally concentrated mass distribution, such as narrow discs, flywheels, and fan wheels.

  While static balancing is relatively simple and can be performed with minimal equipment, it has limitations. It cannot detect or correct couple or dynamic unbalance, which are more complex forms of imbalance that occur in many industrial rotors.

• Dynamic Balancing: Dynamic balancing is a more advanced method that addresses all types of rotor unbalance, including static, couple, and dynamic unbalance. This method involves:
  1. Rotating the rotor at operational or near-operational speeds
  2. Measuring vibration and phase angle at multiple points along the rotor
  3. Using specialized equipment to calculate the required correction weights and their locations
  4. Adding or removing weights at specific points to achieve balance

  Dynamic balancing is typically performed using specialized balancing machines equipped with vibration sensors and computerized analysis systems. These machines can detect subtle imbalances and provide precise correction recommendations.

  The advantages of dynamic balancing include:

  • Higher accuracy and precision compared to static balancing
  • Ability to correct complex unbalance conditions
  • Suitability for a wide range of rotor types and sizes
  • Capability to balance rotors at or near their operating speeds

  Dynamic balancing is essential for flexible rotors, high-speed rotors, and those with complex geometries or mass distributions.

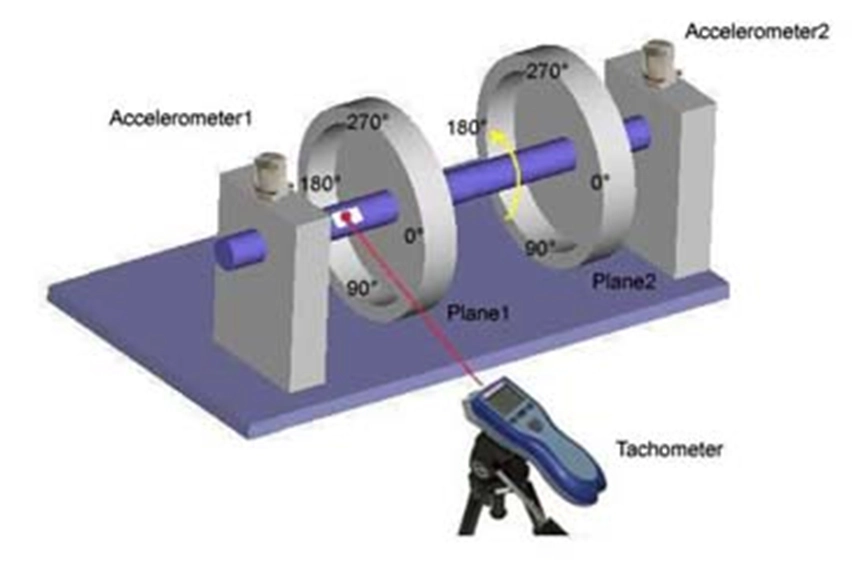

• Two-Plane Balancing: Two-plane balancing is a specific type of dynamic balancing used for rotors that require correction in two separate planes perpendicular to the axis of rotation. This method is particularly useful for:
  • Long rotors where unbalance can occur at different axial locations
  • Rotors with significant axial separation between major mass concentrations
  • Addressing both static and couple unbalance simultaneously

  The process involves:

  1. Measuring vibration and phase angle in two separate planes
  2. Calculating correction weights for both planes
  3. Adding or removing weights in both planes to achieve overall balance

  Two-plane balancing provides more comprehensive correction than single-plane balancing and is often necessary for achieving optimal balance in complex rotors.

• Modal Balancing: Modal balancing is an advanced technique used for flexible rotors that exhibit multiple vibration modes at different speeds. This method takes into account the rotor's natural frequencies and mode shapes to achieve balance across a range of operating speeds. The process involves:
  1. Identifying the rotor's critical speeds and mode shapes through vibration analysis
  2. Measuring vibration response at multiple speeds and locations along the rotor
  3. Using specialized software to calculate optimal correction weights that address multiple vibration modes simultaneously

  Modal balancing is particularly useful for:

  • Turbomachinery with long, flexible shafts
  • Rotors that operate across a wide speed range
  • Systems where traditional balancing methods have proven ineffective

  While modal balancing requires more sophisticated equipment and expertise, it can provide superior results for complex rotor systems.

• Influence Coefficient Balancing: Influence coefficient balancing is a systematic approach that involves:
  1. Adding trial weights to the rotor at specific locations
  2. Measuring the resulting changes in vibration amplitude and phase
  3. Calculating influence coefficients that relate weight changes to vibration response
  4. Using these coefficients to determine optimal correction weights

  This method offers several advantages:

  • High precision and repeatability
  • Ability to balance rotors with complex geometries or limited access
  • Reduced number of trial runs compared to traditional methods
  • Suitability for in-situ balancing of installed machinery

  Influence coefficient balancing is widely used in industries where high-precision balancing is critical, such as aerospace and power generation.

• In-Situ Balancing: In-situ balancing, also known as field balancing, is performed on rotors that cannot be easily removed from their operating environment. This method is particularly valuable for:
  • Large industrial machinery where disassembly is impractical or costly
  • Critical equipment that cannot be taken offline for extended periods
  • Addressing balance issues that arise during normal operation

  The process typically involves:

  1. Using portable balancing equipment to measure vibration on-site
  2. Adding trial weights to accessible locations on the rotor
  3. Calculating and applying final correction weights based on vibration measurements

  While in-situ balancing may have some limitations compared to shop balancing, it offers significant advantages in terms of reduced downtime and the ability to address balance issues in the actual operating environment.

• Automated Balancing Systems: Advancements in technology have led to the development of automated balancing systems that can perform real-time balance corrections during operation. These systems typically consist of:
  • Permanently installed vibration sensors
  • Actuators capable of adding or removing small amounts of weight
  • Control systems that continuously monitor and adjust balance

  Automated balancing systems are particularly useful for:

  • High-speed machinery where manual balancing is impractical
  • Applications requiring frequent balance adjustments due to changing operating conditions
  • Reducing maintenance downtime and improving overall equipment reliability

  While these systems can be complex and costly to implement, they offer significant long-term benefits in terms of reduced maintenance and improved equipment performance.

Conclusion

Rotor balancing is a crucial process in ensuring the smooth and efficient operation of rotating machinery. The choice of balancing method depends on the specific requirements of the application, including rotor size, operating speed, and precision needs. From simple static balancing for low-speed applications to complex dynamic and two-plane balancing for high-speed rotors, each method offers unique advantages and addresses different types of imbalance.
