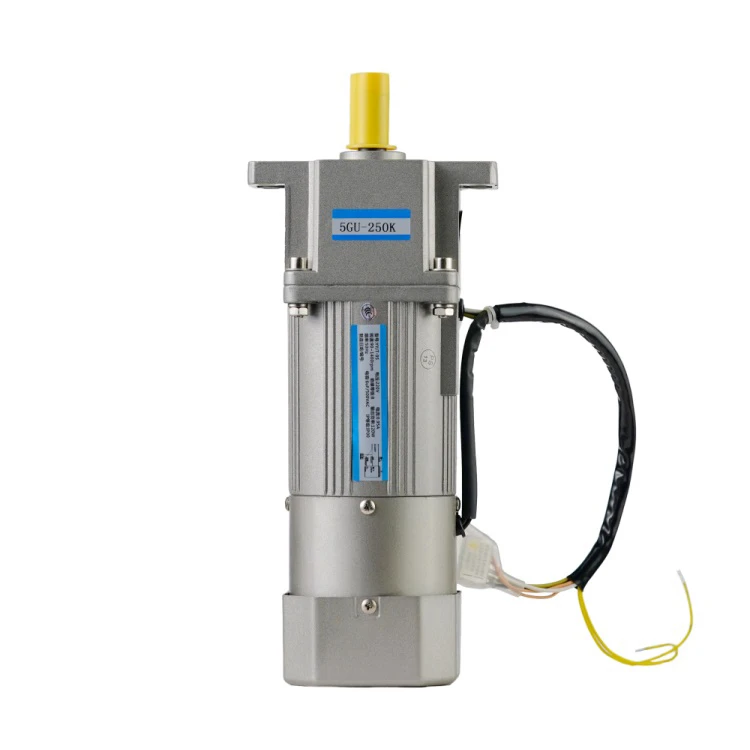

90MM 120W Micro AC Gear Motor

$235-$250

The 90MM 120W Micro AC Gear Motor features high - quality engineering, ensuring durability. It has outstanding torque characteristics, providing strong power. The instant start/stop functionality makes it very convenient. It is suitable for machines like small - scale industrial conveyors and packaging equipment. It is mainly used in light - industrial sectors such as manufacturing and packaging.

Get a QuoteLeave a Message

Model TypeAC Motor

Voltage(V)110/220/380

Output(W)120

Size(mm)90

Speed(RPM)1400/1680

SPECIFICATIONS

  Motor Model Power Voltage Frequency Current Stating Torque Rated Torque Rated Speed Rated Time Capacitor
motor with round shaft motor with gear shaft W V Hz A mN.M mN.M r/min min uF/VAC
Induction motor 5IK90/120A-AF 5IK90/120GN-AF 90/120 1PH110 50 1.47/1.73 768/1022 614/818 1400 continuous 20/250
1 Phase 60 1.47/1.73 640/852 512/682 1680
5IK90/120A-CF 5IK90/120GN-CF 90/120 1PH220 50 0.75/1.05 768/1022 614/818 1400 continuous 6/450
1 Phase 60 0.74/1.05 640/852 512/682 1680
5IK90/120A-SF 5IK90/120GN-SF 90/120 3PH220 50 0.63/0.73 768/1022 614/818 1400 continuous
3 Phase 60 0.58/0.63 640/852 512/682 1680
5IK90/120A-UF 5IK90/120GN-UF 90/120 3PH380 50 0.36/0.42 768/1022 614/818 1400 continuous
3 Phase 60 0.33/0.36 640/852 512/682 1680
Reversible motor 5RK90/120A-AF 5RK90/120GN-AF 90/120 1PH110 50 1.80/2.00 768/1022 614/818 1400 30 20/250
1 Phase 60 1.80/2.00 640/852 512/682 1680
5RK90/120A-CF 5RK90/120GN-CF 90/120 1PH220 50 0.86/1.20 768/1022 614/818 1400 30 6/450
1 Phase 60 0.85/1.26 640/852 512/682 1680
Brake motor 5IK90/120A-AFM 5IK90/120GN-AFM 90/120 1PH110 50 1.80/2.00 768/1022 614/818 1400 30 20/250
1 Phase 60 1.80/2.00 640/852 512/682 1680
5IK90/120A-CFM 5IK90/120GN-CFM 90/120 1PH220 50 0.86/1.20 768/1022 614/818 1400 30 6/450
1 Phase 60 0.85/1.26 640/852 512/682 1680
5IK90/120A-SFM 5IK90/120GN-SFM 90/120 3PH220 50 0.63/0.73 768/1022 614/818 1400 continuous
3 Phase 60 0.58/0.63 640/852 512/682 1680
5IK90/120A-UFM 5IK90/120GN-UFM 90/120 3PH380 50 0.36/0.42 768/1022 614/818 1400 continuous
3 Phase 60 0.33/0.36 640/852 512/682 1680
  Motor Model Power Voltage Frequency Speed Control Range Stating Torque Rated Torque Rated Time Capacitor
Variable motor motor with round shaft motor with gear shaft W V Hz A mN.M 90r/min mN.M 1400r/min mN.M min uF/VAC
5IK90/120RA-AF 5IK90/120RGN-AF 90/120 1PH110 50 90-1400 768/1022 245/327 614/818 continuous 20/250
1 Phase 60 90-1680 640/852 245/327 614/818
5IK90/120RA-CF 5IK90/120RGN-CF 90/120 1PH220 50 90-1400 768/1022 245/327 614/818 continuous 6/450
1 Phase 60 90-1680 640/852 245/327 614/818
reduction ratio KW 2 2.5 3 3.6 4 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200 250 300 400 500 600 750
50
Hz		 r/min 0.09 700 560 467 389 350 280 233 187 156 140 112 93 78 70 56 47 38.8 35 28 23.3 18.7 15.5 14 11.7 9.3 7.8 7 5.6 4.7 3.5 2.8 2.3 1.86
N.M 1.16 1.45 1.74 2.09 2.32 2.9 3.48 4.35 5.21 5.79 6.84 8.21 9.86 11 12.7 15.3 18.3 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
60
Hz		 r/min 0.09 840 672 560 467 420 336 280 224 187 168 134 112 93.3 84 67.2 56 46.7 42 33.6 28 22.4 18.7 16.8 14 1.2 9.33 8.4 6.72 5.6 4.2 3.36 2.8 2.24
N.M 0.93 1.16 1.4 1.68 1.86 2.33 2.79 3.49 4.19 4.66 5.5 6.6 7.92 8.8 10.2 12.3 14.7 16.4 20 20 20 20 20 20 0 20 20 0 20 20 20 20 20
50
Hz		 r/min 0.12 700 560 467 389 350 280 233 187 156 140 112 93 78 70 56 47 38.8 35 28 23.3 18.7 15.5 14 11.7 9.3 7.8 7 5.6 4.7 3.5 2.8 2.3 1.86
N.M 1.54 1.93 2.32 2.78 3.09 3.86 4.63 5.79 6.95 7.72 8.49 10.2 12.2 13.6 17 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
60
Hz		 r/min 0.12 840 672 560 467 420 336 280 224 187 168 134 112 93.3 84 67.2 56 46.7 42 33.6 28 22.4 18.7 16.8 4 1.2 9.33 8.4 6.72 5.6 4.2 3.36 2.8 2.24
N.M 1.24 1.55 1.86 2.23 2.483.1   3.72 4.66 5.59 6.21 6.82 8.19 9.82 10.9 13.6 16.4 19.6 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20

Product Display

90MM 120W

Micro AC Gear Motor

  • Extremely high torque output
  • Easy bidirectional operation
  • Multiple speed ranges
  • Energy-saving design

Support
Customization

Factory
Direct Sales

Product Feature

Extremely high torque output

The motor has high torque output and provides excellent power for demanding applications. It can work well under extreme conditions and is ideal for tasks that require a large amount of torque output.

Multiple speed ranges

Precise control can be easily achieved, and the speed can be adjusted according to the operating requirements, achieving unparalleled performance and versatility in various situations.

Easy bidirectional operation

The reversible gear function goes beyond traditional designs and is ideal for machinery that needs to change the direction of rotation, such as cranes and conveyor systems. This feature provides additional convenience and adaptability when bidirectional operation is critical.

Energy-saving design

Designed for maximum energy efficiency, it can reduce operating costs for continuous industrial use. In addition to being economical, it also promotes sustainable development by optimizing resource utilization.

Product Applications

Industrial Automation

CNC lathe machine, Industrial Robot, Printing Equipment

Medical Devices

CMedical X-ray Machines, Medical Infusion Pumps, Medical Centrifuges

Laboratory Equipment

Fume Hood, Crushing Grinder, Rotary Evaporator

Consumer Electronics

Refrigerators, Washing Machines, Electric Fans

Office Automation

Printers, Scanners, Fax Machines

Small Scale Renewable Energy Projects

Small Wind Turbines, Micro Hydro Generators, Solar Air Conditioning Systems

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
90mm-120w-micro-ac-gear-motor-dimensions-1.STEP1621KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-2.STEP1172KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-3.STEP1141KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-4.STEP1400KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-5.STEP1374KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-6.STEP1426KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-7.STEP1387KBDownload
90mm-120w-micro-ac-gear-motor-dimensions-8.STEP1644KBDownload
AC-Motor-Catalog.pdf23.4MBDownload
